Macromatic TAA Series Analog-Set 1/16 DIN MountingTime Delay Relays - Multi-Function Multi-Range

Macromatic TAA Series Analog-Set 1/16 DIN MountingTime Delay Relays - Multi-Function Multi-Range

Features:
  • 6 field-selectable functions in one unit
  • Large dial for setting of time delay
  • 50ms to 100 Hours programmable timing range
  • Universal 100-240V AC/ 24-240V DC input voltage
  • Panel, track or surface mounting
  • 1/16 DIN style case (comes with panel-mounting adapter)
  • 5A DPDT output contacts
Macromatic TAA Series

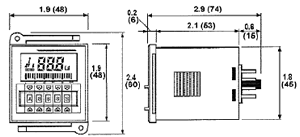

Dimensions in.(mm) Panel Cutout (mm)
Approvals Approvals

Click here for specifications and dimensions in .pdf format PDF
Part Number Multi-Function Input Voltage Wiring Socket
Add part number TAA1U to your Quote. TAA1U Six (6) Built-in Functions:
Power ON Delay Mode
Power ON Delay 1 Mode (One-Shot Output)
Power ON Delay 2 Mode
Flicker Mode
Flicker 1 Mode
Interval Mode
Please click here to see .pdf specs with function diagrams
100-240V AC 50/60Hz
& 24-240V DC
Diagram 134 Diagram 182
Add part number TAA2U to your Quote. TAA2U Six (6) Built-in Functions:
Signal ON Delay Mode
Flicker Mode
Flicker 1 Mode
Signal OFF Delay Mode
Signal ON/OFF Delay Mode
Interval Mode
Please click here to see .pdf specs with function diagrams
100-240V AC 50/60Hz
& 24-240V DC
Diagram 183

Sockets and Accessories
Description Part Number Image
8 Pin Octal Socket Add part number 70169-D to your Quote. 70169-D 70169-D
8 Pin Octal Socket (Back Mounting) Add part number SR6P-M08G to your Quote. SR6P-M08G SR6P-M08G
11 Pin Octal Socket Add part number 70170-D to your Quote. 70170-D 70170-D
11 Pin Octal Socket )Back Mounting) Add part number SR6P-M11G to your Quote. SR6P-M11G SR6P-M11G
Panel-Mounting Adaptor Included

Voltage Tolerance: ±10% of rated voltage
Load (Burden): Less than 2.5 VA
Repeat Accuracy: ±0.01%, ±0.05 seconds (includes variation due to voltage and temperature changes)
Recycle Time: 0.2 seconds maximum
Temperature: -10° to 55°C (14° to 131°F)
LED Indicators: One red LED indicates Input Voltage/Timing (flashing) & a second red LED indicates relay status.
Output Contacts: 5A DPDT Resistive @ 250V AC
Life: Mechanical: 10,000,000 operations
Full Load: 100,000 operations
