Weco PCB Terminal Blocks - 970-T Series
  • Dovetail version
  • Wire entrance parallel to PC Board
  • Can be factory, field or distributor assembled to almost any length

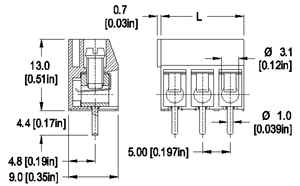

Technical Data:
Center to Center Spacing:  5 mm (0.197 in.)
Nominal Cross Section:  2.5 mm2 (3874 mils2)
Wire Stripping Length:  6.5 mm (0.26 in.)
Recommended Hole Diameter in PC Board:  1.3 mm (0.051 in.)
Screw Tightening Torque: UL: 4.5 lbfin
CSA: 0.51 Nm
Rated Impulse Withstand Voltage: 2500 V
Weco 970-T Series
Dovetail Feature
Rohs Compliant
RoHS WEEE Pb free surface compliant
Rating Current(A) Voltage(V) Application Group     AWG
UL UL File No.E69841 20 300 B,D 26-12
CSA CSA File No.LR24322 15 300 B,D,E 26-10
Note: Version DS is CSA certified for 26-10 AWG. UL: 24-26 AWG range for factory wiring only.
Molding: Polyamide, self extinguishing UL 94, V-0, color grey
Temperature limits:   Weco 970-T Series
Short Time: 140°C (284°F)
Continuous: RTI 105°C (221°F)
Low Limit: -40°C (-40°F)
Comparative Tracking Index: CTI > 600
Oxygen Index Rating: 32%
Terminal Body: Tin plated copper alloy
Wire Protector: Tin plated copper alloy
Screw: M3, Slotted head, zinc plated blue passivated, steel substrate
Solder Pin: Ø 1.0 mm (0.04 in.), Tin plated copper alloy
Ordering Information:
Part Number Number of Poles
Add part number 970-T-DS/02 to your Quote. 970-T-DS/02 2
Add part number 970-T-DS/03 to your Quote. 970-T-DS/03 3
