| Weco PCB Terminal Blocks - 120-A-111 Series Plugs |
 |
| |
| Description: |
- Plug for use with Vertical or Horizontal PCB
Headers
- Mold to length 2 to 24 Poles
|

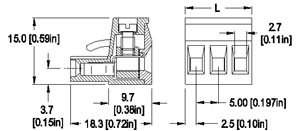

| |
| Technical Data: |
| Center to Center Spacing: |
5 mm (0.197 in.) |
| Nominal Cross Section: |
2.5 mm2 (3874 mils2) |
| Wire Stripping Length: |
7 mm (0.28 in.) |
| Screw Tightening Torque: |
UL: 4.5 lbfin |
| CSA: 0.51 Nm |
| Rated Impulse Withstand Voltage: |
2500 V |
|
|
RoHS WEEE Pb free surface compliant |
| Rating |
Current(A) |
Voltage(V) |
Application
Group |
AWG |
| UL |
UL File No.E69841 |
15 |
300 |
B |
26-12 |
| 10 |
300 |
D |
26-12 |
| CSA |
CSA File No.LR24322 |
15 |
300 |
B |
26-12 |
| 10 |
300 |
D,E |
26-12 |
|
| |
| Material: |
| Molding: |
Polyamide, self extinguishing UL 94, V-0, color grey |
| Temperature limits: |
|
 |
| Short Time: |
140°C (284°F) |
| Continuous: |
RTI 105°C (221°F) |
| Low Limit: |
-40°C (-40°F) |
| Comparative Tracking Index: |
CTI = 600V |
| Oxygen Index Rating: |
33% |
| Terminal Body: |
Nickel plated copper alloy |
| Wire Protector and Contact Spring: |
Tin plated copper alloy |
| Screw: |
M3, Slotted head, zinc plated blue passivated, steel substrate |
|
| |
|
| Ordering Information: |
|
| Part Number |
Number of Poles |
|
Part Number |
Number of Poles |
 120-A-111/02 |
2 |
|
120-A-111/14 |
14 |
|
120-A-111/03 |
3 |
|
120-A-111/15 |
15 |
|
120-A-111/04 |
4 |
|
120-A-111/16 |
16 |
|
120-A-111/05 |
5 |
|
120-A-111/17 |
17 |
|
120-A-111/06 |
6 |
|
120-A-111/18 |
18 |
|
120-A-111/07 |
7 |
|
120-A-111/19 |
19 |
|
120-A-111/08 |
8 |
|
120-A-111/20 |
20 |
|
120-A-111/09 |
9 |
|
120-A-111/21 |
21 |
|
120-A-111/10 |
10 |
|
120-A-111/22 |
22 |
|
120-A-111/11 |
11 |
|
120-A-111/23 |
23 |
|
120-A-111/12 |
12 |
|
120-A-111/24 |
24 |
|
120-A-111/13 |
13 |
|
|
|
|
