Weco PCB Terminal Blocks - 970 Series
Description:
  • Mold to length version
  • Wire entrance parallel to PC Board

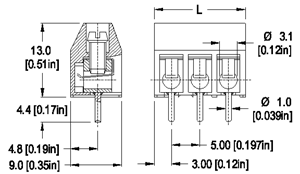

Technical Data:
Center to Center Spacing:  5 mm (0.197 in.)
Nominal Cross Section:  2.5 mm2 (3874 mils2)
Wire Stripping Length:  6.5 mm (0.26 in.)
Recommended Hole Diameter in PC Board:  1.3 mm (0.051 in.)
Screw Tightening Torque: UL: 4.5 lbfin
CSA: 0.51 Nm
Rated Impulse Withstand Voltage: 2500 V
Rohs Compliant
RoHS WEEE Pb free surface compliant
Rating Current(A) Voltage(V) Application Group     AWG
UL UL File No.E69841 20 300 B 22-12
10 300 D 22-12
CSA CSA File No.LR24322 15 300 B,D,E 22-10
Note: Version DS is CSA certified for 26-10 AWG. UL: 24-26 AWG range for factory wiring only.

Material: Version 2 to 8 poles
Molding: Polyamide, self extinguishing UL 94, V-0, color grey
Temperature limits:   Weco 970 DS Series
Short Time: 140°C (284°F)
Continuous: RTI 105°C (221°F)
Low Limit: -40°C (-40°F)
Comparative Tracking Index: CTI > 600
Oxygen Index Rating: 32%
Material: Version 9 to 32 poles
Molding: Polyamide (glass fiber reinforced), self extinguishing UL 94, V-0, color grey
Temperature limits:
Short Time: 200°C (392°F)
Continuous: RTI 105°C (221°F)
Low Limit: -40°C (-40°F)
Comparative Tracking Index: CTI > 175
Oxygen Index Rating: 33%
All lengths
Terminal Body: Tin plated copper alloy
Wire Protector: Tin plated copper alloy
Screw: M3, Slotted head, zinc plated blue passivated, steel substrate
Solder Pin: Ø 1.0 mm (0.04 in.), Tin plated copper alloy

Ordering Information:
Part Number Number of Poles   Part Number Number of Poles
Add part number 970-DS/02 to your Quote. 970-DS/02 2   Add part number 970-DS/18 to your Quote. 970-DS/18 18
Add part number 970-DS/03 to your Quote. 970-DS/03 3   Add part number 970-DS/19 to your Quote. 970-DS/19 19
Add part number 970-DS/04 to your Quote. 970-DS/04 4   Add part number 970-DS/20 to your Quote. 970-DS/20 20
Add part number 970-DS/05 to your Quote. 970-DS/05 5   Add part number 970-DS/21 to your Quote. 970-DS/21 21
Add part number 970-DS/06 to your Quote. 970-DS/06 6   Add part number 970-DS/22 to your Quote. 970-DS/22 22
Add part number 970-DS/07 to your Quote. 970-DS/07 7   Add part number 970-DS/23 to your Quote. 970-DS/23 23
Add part number 970-DS/08 to your Quote. 970-DS/08 8   Add part number 970-DS/24 to your Quote. 970-DS/24 24
Add part number 970-DS/09 to your Quote. 970-DS/09 9   Add part number 970-DS/25 to your Quote. 970-DS/25 25
Add part number 970-DS/10 to your Quote. 970-DS/10 10   Add part number 970-DS/26 to your Quote. 970-DS/26 26
Add part number 970-DS/11 to your Quote. 970-DS/11 11   Add part number 970-DS/27 to your Quote. 970-DS/27 27
Add part number 970-DS/12 to your Quote. 970-DS/12 12   Add part number 970-DS/28 to your Quote. 970-DS/28 28
Add part number 970-DS/13 to your Quote. 970-DS/13 13   Add part number 970-DS/29 to your Quote. 970-DS/29 29
Add part number 970-DS/14 to your Quote. 970-DS/14 14   Add part number 970-DS/30 to your Quote. 970-DS/30 30
Add part number 970-DS/15 to your Quote. 970-DS/15 15   Add part number 970-DS/31 to your Quote. 970-DS/31 31
Add part number 970-DS/16 to your Quote. 970-DS/16 16   Add part number 970-DS/32 to your Quote. 970-DS/32 32
Add part number 970-DS/17 to your Quote. 970-DS/17 17
