| Sealcon Strain
Reliefs - PG and Metric Threads - Adapters - Nylon |
 |
 |
| SPECIFICATIONS: |
| Operating Temperature: |
Materials: |
| -40°F to 176°F (-20°C to
80°C) |
Body & Nut: Nylon
O-Ring: Buna-N
(Optional)
Seal Ring: Polyethylene (Optional) |
| P/N |
Type |
Male Thread |
Female Thread |
Thread Length |
Height |
Inner Diameter |
Wrench Flats |

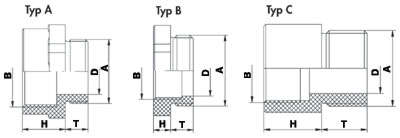

| Metric to PG
|
A |
B |
T |
H |
D |
W |
 AF-1207-BK
|
A |
M12 x 1,5 |
PG 7 |
.31 (8) |
.47 (12) |
.26 (6.5) |
.67 (17) |
|
AF-1609-BK
|
C |
M16 x 1,5 |
PG 9 |
.04 (1) |
.75 (19) |
.33 (8.5) |
-- |
|
AF-2013-BK
|
A |
M20 x 1,5 |
PG 13,5 |
.31 (8) |
.51 (13) |
.55 (14) |
.98 (25) |
|
AF-2513-BK
|
B |
M25 x 1,5 |
PG 13,5 |
.31 (8) |
.24 (6) |
.71 (18) |
-- |
|
AF-2516-BK
|
A |
M25 x 1,5 |
PG 16 |
.31 (8) |
.55 (14) |
.71 (18) |
1.14 (29) |
|
AF-3221-BK
|
A |
M32 x 1,5 |
PG 21 |
.39 (10) |
.59 (15) |
.98 (25) |
1.14 (29) |
|
AF-4029-BK
|
A |
M40 x 1,5 |
PG 29 |
.39 (10) |
.59 (15) |
1.30 (33) |
1.42 (36) |
|
AF-5036-BK
|
A |
M50 x 1,5 |
PG 36 |
.47 (12) |
.67 (17) |
1.69 (43) |
1.77 (45) |
|
AF-6342-BK
|
C |
M63 x 1,5 |
PG 42 |
.59 (15) |
.20 (5) |
2.05 (52) |
2.16 (55) |
|
AF-6348-BK
|
C |
M63 x 1,5 |
PG 48 |
.59 (15) |
.78 (20) |
2.01 (51) |
2.68 (68) |
| P/N |
Type |
Male Thread |
Female Thread |
Thread Length |
Height |
Inner Diameter |
Wrench Flats |
| PG to Metric
|
A |
B |
T |
H |
D |
W |
|
AP-0712-BK
|
C |
PG 7 |
M12 x 1,5 |
.59 (15) |
.75 (19) |
.24 (6) |
-- |
|
AP-0912-BK
|
C |
PG 9 |
M12 x 1,5 |
.59 (15) |
.75 (19) |
.33 (8.5) |
-- |
|
AP-0916-BK
|
A |
PG 9 |
M16 x 1,5 |
.31 (8) |
.47 (12) |
.35 (9) |
.83 (21) |
|
AP-1116-BK
|
C |
PG 11 |
M16 x 1,5 |
.59 (15) |
.75 (19) |
.45 (11.5) |
-- |
|
AP-1120-BK
|
C |
PG 11 |
M20 x 1,5 |
.59 (15) |
.75 (19) |
.45 (11.5) |
-- |
|
AP-1316-BK
|
B |
PG 13,5 |
M16 x 1,5 |
.31 (8) |
.24 (6) |
.55 (14) |
.98 (25) |
|
AP-1320-BK
|
A |
PG 13,5 |
M20 x 1,5 |
.31 (8) |
.51 (13) |
.55 (14) |
.98 (25) |
|
AP-1620-BK
|
A |
PG 16 |
M20 x 1,5 |
.31 (8) |
.51 (13) |
.63 (16) |
1.06 (27) |
|
AP-1625-BK
|
A |
PG 16 |
M25 x 1,5 |
.31 (8) |
.59 (15) |
.63 (16) |
1.18 (30) |
|
AP-2125-BK
|
C |
PG 21 |
M25 x 1,5 |
.59 (15) |
.75 (19) |
.81 (20.5) |
-- |
|
AP-2132-BK
|
A |
PG 21 |
M32 x 1,5 |
.31 (8) |
.59 (15) |
.83 (21) |
1.46 (37) |
|
AP-2932-BK
|
C |
PG 29 |
M32 x 1,5 |
.59 (15) |
.75 (19) |
1.10 (28) |
-- |
|
AP-2940-BK
|
A |
PG 29 |
M40 x 1,5 |
.39 (10) |
.67 (17) |
1.18 (30) |
1.77 (45) |
|
AP-3640-BK
|
C |
PG 36 |
M40 x 1,5 |
.59 (15) |
.20 (5) |
1.50 (38) |
-- |
|
AP-3650-BK
|
C |
PG 36 |
M50 x 1,5 |
.59 (15) |
.77 (19.5) |
1.46 (37) |
-- |
|
AP-4240-BK
|
C |
PG 42 |
M40 x 1,5 |
.59 (15) |
.20 (5) |
1.50 (38) |
-- |
|
AP-4250-BK
|
C |
PG 42 |
M50 x 1,5 |
.59 (15) |
.77 (19.5) |
1.69 (43) |
-- |
|
AP-4850-BK
|
C |
PG 48 |
M50 x 1,5 |
.59 (15) |
.20 (5) |
1.50 (38) |
-- |
|
AP-4863-BK
|
C |
PG 48 |
M63 x 1,5 |
.59 (15) |
.78 (20) |
1.89 (48) |
-- |
|
