Pfannenberg DTS Series Cooling Units - Side Mount - NEMA Type 12


DTS 3245 Cooling Unit (9000-12000 Btu/h)

Features:
  • Long internal air path captures heat above components and provides cool air below
  • Maintains a UL Tested NEMA Type 12 seal against enclosure
  • UL 484 Listed, category ACVS, UL file #SA10300, CE approved for European use
  • High protection system IP 56, maintenance-free
  • Powder coated steel cover for rugged environments, easily painted to match enclosure or machine
  • Condenser with 3 mm fin spacing, highly effective protection against strongly contaminated and aggressive ambient air
  • Uses Internal Standard Control (SC) board
  • Condensate evaporator tray built-in
  • Utilizes a thermal expansion valve (TXV) to ensure maximum performance over a broad range
Pfannenberg DTS 3245 Cooling Unit

Data DTS 3245 Unit
Part Number - ANSI 61 (Gray) Add part number 13383836251 to your Quote. 13383836251 Add part number 13383839251 to your Quote. 13383839251 Add part number 13383844251 to your Quote. 13383844251
Part Number - RAL 7035 (Lt. Gray) Add part number 13383836255 to your Quote. 13383836255 Add part number 13383839255 to your Quote. 13383839255 Add part number 13383844255 to your Quote. 13383844255
Rated Voltage ± 10% 400/460 3Ø 230 115 VAC
Frequency 50/60 50/60 60 Hz
Cooling performance according to EN 14511 9000-12000 Btu/h
Power Consumption 1700 1600 1600 W
Nominal (Run) Current @ 35A/ 35A°C 2.6 9.4 16 A
Starting Current 8 38 57 A
Unimpeded airflow (free flow) Internal 706 (1200) 765 (1300) 706 (1200) CFM (m³/h)
External 706 (1200) 765 (1300) 706 (1200) CFM (m³/h)
Fuse (maximum)** Class CC 10 15 25 A
Type of connection permanent spring terminal
Noise level (according to EN ISO 3741) <73 dB(A)
Weight (without packaging) 150 (68) lb (kg)
Ambient temperature range +59...+131 / +15...+55 °F / °C
Control range (adjustable) +77...+113 / +25...+45
factory setting +95 / +35
°F / °C
Refrigerant type R134a
Refrigerant quantity 1200 g
Duty cycle 100%
Condensate management active condensate evaporation system with safety overflow
Protection system according to NEMA type NEMA 12 against enclosure when properly installed
NEMA 1 towards the surroundings when properly installed

Design (Housing) galvanized sheet steel
Design (Cover) galvanized/electrostatically powder coated (200 °C)
** SCCR rating - See user manual for instructions to achieve 50kA (460v) SCCR rating.

Accessories Piece Part Number
Metal Mesh Filter 1 18881500007
Condensate bottle 1 Add part number 18314000100 to your Quote. 18314000100

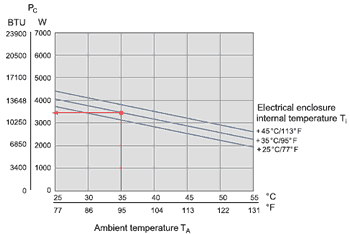

Cooling Capacity Performance Curve

Chart Instructions Performance Curve

Dimensions
DTS 3245 Dimensions
