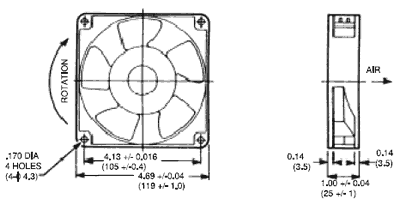

| Size: |
4.69 in. sq. x 1.0 in. thk.
(119 mm sq. x 25 mm thk.) |

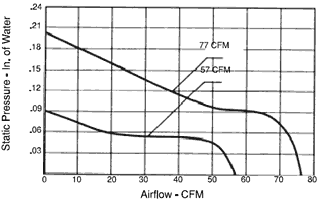

| AirFlow: |
54-77 CFM |
| Acoustical Noise: |
30-38 dB (A) |
| Materials : |
Frame - Aluminum Alloy, Painted Black Finish
Bearings - Sealed Ball
Impeller - UL94V-0 Plastic |
| Weight : |
13 oz. (360g) |
| Termination : |
Terminals |
| Operational Temperature : |
-40°C to +70°C |
| Insulation Resistance : |
100,000 Ohms min. @ 500 VDC |
| Dielectric Strength : |
500 VAC for 1 min. |
| Insulation : |
Class A |
| Safety : |
Impedance Protected |
| Safety Approvals : |
UL, CSA, & CE |
