| SS 8 |

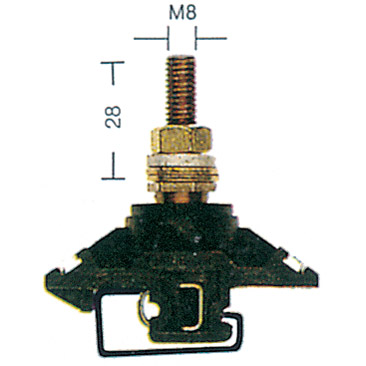

Representative Photo |
|
| Technical Information |
|
|
|
| Clamping Type |
Bolt/Clamp
|
| Series |
SAK Series
|
| Rail Type |
Combifoot
|
| Function |
Feed Through
|
| Configuration |
Cable Lug
|
| Color/Material |
KrG
|
Technical Data |
|
|
| | UL | CSA | VDE | | Rated Voltage | | | 1500 V | | Rated Current | | | 125 A | | Wire Size | | | 35 mm² |
|
Additional Data |
|
|
|
| Width/Length/Height mm (in.) |
36.5/60/68 (1.44"/2.36"/2.68")
|
| Insulation Stripping Length mm (in.) |
|
| Torque Nm (lb. in) |
|
| Clamping Screw |
|
Suggested Accessories |
|
|
|
| DIN-rail |
| End plate/partition |
| Marking tags (DEK) |
| QL jumper |
|
