Weco Series ZAF Uninsulated Wire Ferrules


Weco Series ZAF Uninsulated


Uninsulated Ferrules Type ZAF

Description Insulated ferrules provide protection and ensure reliable connection of stranded wires for termination in terminal blocks. Ferrules are mechanically crimped to the stripped copper wire. WECO also offers wire stripping and crimping tools. Ferrule sizes range from 24 AWG to 400 MCM.

Technical Data
Wire range: 26 to 3/0 AWG (depending on product chosen)

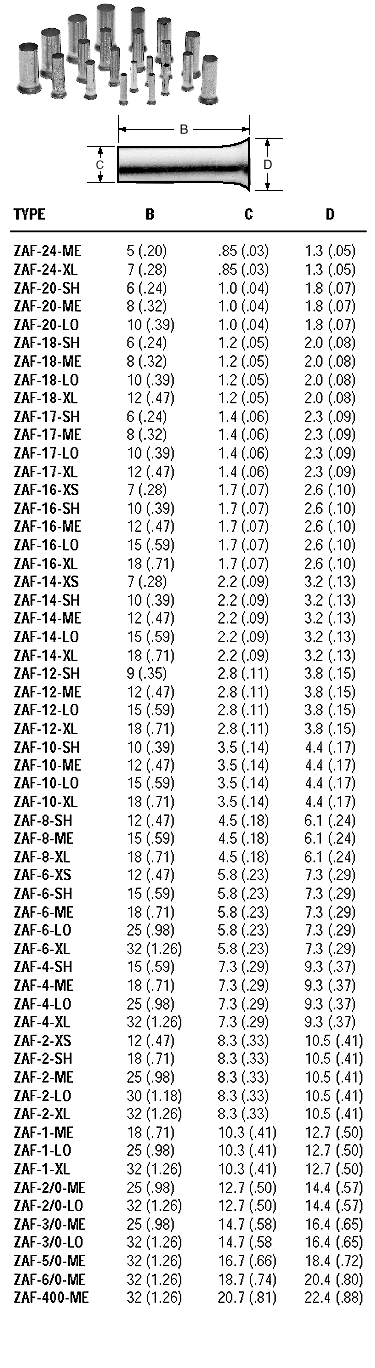

Wire stripping length: refer to dimension B
Standard package:
26 to 14 AWG versions: 500 pieces
12 AWG ME,LO versions: 500 pieces
12 AWG XL to 6 AWG versions: 100 pieces
4 AWG to 400 MCM versions: 50 pieces

Material
Electrolytic copper, tin plated

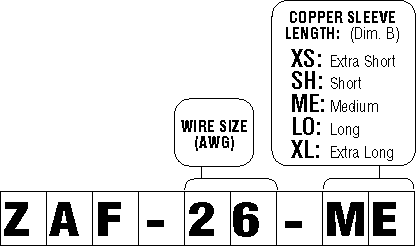

Ordering Information

Uninsulated Ferrules Type ZAF
