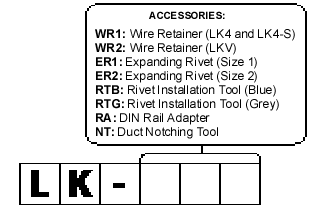

Wiring Duct Accessories

Wire Retainer

Retains wires to simplify installation and maintenance.
Wires may be added prior or after installation.
Can be used in conjunction with cover.

Material: PS
Color: grey - RAL 7030

Expanding Rivet

Used with all duct styles.
Installs quickly and easily using WECO Rivet Installation Tool.

Material: nylon
Color: white - RAL 9001
Size 1: 04.5 mm (for base thickness from 2 to 4 mm)
Size 2: 06 mm (for base thickness from 4 to 8 mm)

WECO Rivet Installation Tool

Used to install WECO Expanding Rivets

Material: plastic
Color: blue - RAL 5012 or grey - RAL 7030

DIN Rail Adaptor

Allows wiring duct to mount on DIN EN 50022 mounting rail.
Snaps on DIN rail.
Expanding Rivets are required to secure Wiring Duct to DIN Rail Adaptor.

Material: PS
Color: grey - RAL 7030
Dimensions: (L x W) 70 mm x 70 mm

DIN EN 50022 Mounting Rail

Rail is perforated to simplify installation.

Material: zinc plated steel, yellow chromated
Color: yellow
Dimensions:
(L x W x H) 2000 mm x 35 mm x 7.5 mm

Duct Notching Tool

Provides a quick and easy method to notch wiring duct sidewalls down to the bottom scoreline for &ldquoT&rdquo and corner junctions.

Material: forged steel
Color: black (with red PVC handles)
