Description

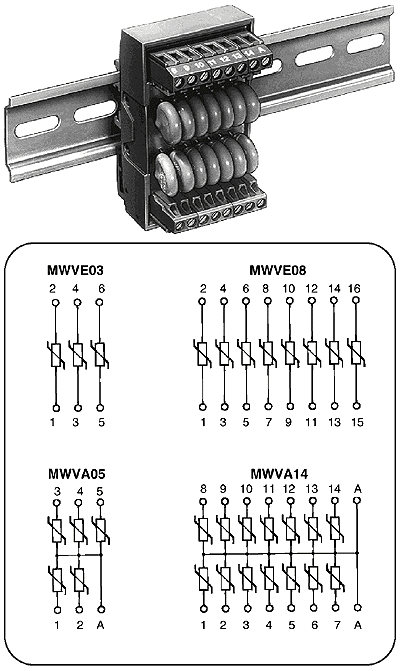

Varistor modules MWV are available with 3 or 8 individual,
independent varistors. Alternatively they are available with 5 or 14 varistors
with a common return lead.
These modules have three important fields of application:
- Voltage regulation and voltage limiting
- Reactive switching energy absorption and arc quenching
- Voltage surge protection (limiting voltage spikes on power grids caused by
lightning, reactive switching etc)
Our modules use zinc oxide varistors.
Technical Data
Maximum voltage between two adjacent contacts:
250 VAC
Operating voltages may be chosen.
Maximum single current surge at operating voltages of:
11-40 V: 1000 A
50-275 V: 4500 A
Maximum continuous load at operating voltages of:
11-40 V: 0.1 W
50-275 V: 0.6 W
Ambient temperature: -40° to 60°C / -40° to
140°F
Dimensions
Height:
mounting rail:
H-35: 51 mm / 2.01 in.
G-32: 56 mm / 2.20 in.
H-15: 50 mm / 1.97 in.
Length:
MWV E03, A05: 24 mm / 0.95 in.
MWV E08, A14: 47 mm / 1.85 in.
Width: 76 mm / 3.00 in.
|
