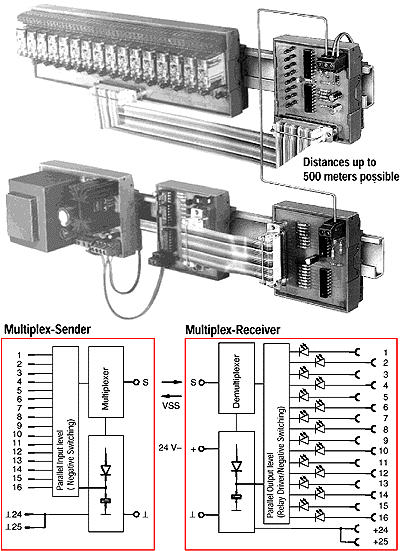

Description
The Multiplex transmitter/receiver modules electro-nically
acquire control signals from various sources and transmit these serially, i.e.
in succession via only one line.
In the receiver, the data is reconverted to parallel transmission and the
contact elements (addresses) are activated, so that the use of multi-wire lines
between the transmitter and receiver can be avoided. Disturbances caused by
mechanical, electrical or other influences are detected and eliminated by
resetting in conjunction with cyclic scanning operations.
The address outputs (driver) are designed for relay control and are
short-circuit proof. The modules are easy to wire via sub-miniature connectors
or screw terminals. The transmitter inputs can be driven with virtually all
electronic switching elements. The complete control system, including
programmable controller, requires only one power supply. Already existing
systems can be extended with minimum wiring.

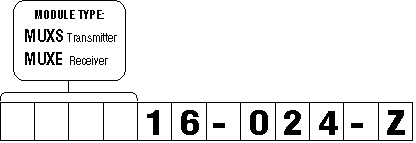

Technical Data
Channels: 16
Operating voltage: 24 VDC
Input: parallel, negative
Distance: 500 meters / 1640 feet maximum
Transmitter
Input sensitivity: <2 kž
Input polarity: negative
Input sensors: supplied by customer
Transmitter power supply : via single data line
Receiver
Output: relay drivers
Driver output per channel : 200 mA
Polarity: negative
Operating temperature:
-40° to +85°C / -40° to +185°F
Automatic fault detection and shut-down of drivers.
Dimensions
Height:
mounting rail: H-35: 58 mm / 2.28 in.
G-32: 63 mm / 2.48 in.
H-15: 57 mm / 2.24 in.
Length: 69 mm / 2.72 in.
Width: 76 mm / 3.00 in.
|
