Interface Modules MTK

with DIN 41 612 connectors 64 poles

Description

MTE

Interface module MTE with DIN 41 612 connectors is normally applied as a distributor of control lines at the interface with electronic circuits. It is designed to convert multi conductor cable inputs to individual wire outputs. The standard version employs a male, or female type C 64 connector. Screw fasteners, which anchor the cable to both guide ends, make the connections vibration proof.

MTK

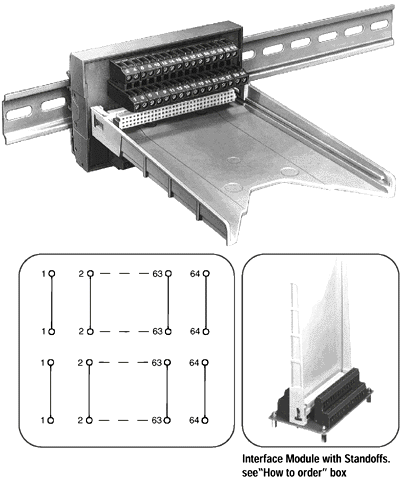

This module is intended for use at the interface between electronic and conventional industrial control circuits. The card holder is designed to accept 100 x 160 mm / 3.93 x 6.3 in. Eurocards. The unit can be supplied with mounting stand-offs instead of a module shell to meet special circuit, or wiring needs. Input wiring is connected by screw terminals, or tab connectors. The card holder is equipped with either male, or female C 64 connectors according to DIN 41 612.

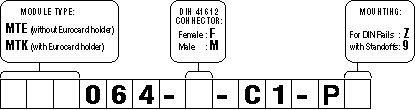

Technical Data

Nominal rated voltage: 125 VAC
Nominal rated current: 1.5 A

Dimensions

Type MTE (without Eurocard holder):
Height:
mounting rail:
H-35: 65 mm / 2.56 in.
G-32: 70 mm / 2.76 in.
H-15: 64 mm / 2.52 in.

Length: 114 mm / 4.49 in.
Width: 76 mm / 3.00 in.

Type MTK (with Eurocard holder)
Height:
mounting rail: H-35:183 mm / 7.20 in.
G-32: 188 mm / 7.40 in.
H-15: 182 mm / 7.17 in.
Length: 114 mm / 4.49 in.
Width: 76 mm / 3.00 in.
