D-Sub Miniature Interface Modules MTDA

9 - 50 poles

Description

Type MTDA interface modules were originally designed by WECO® for use in motor control machinery, electronic assembly equipment, material handling, specialty machinery and multi-axis systems, etc. Its particular advantage is that it provides a low profile interface between discrete wiring and a D-Subminiature connector.

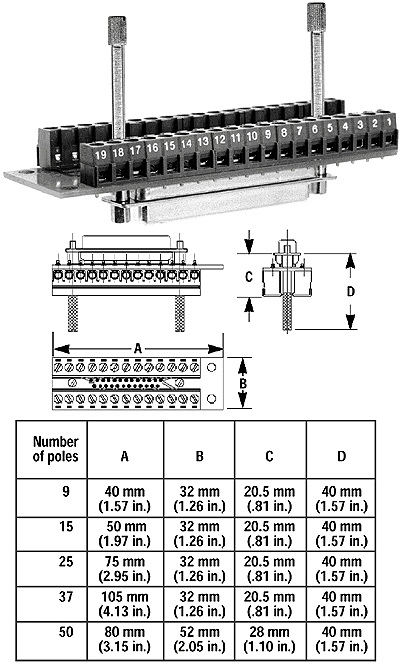

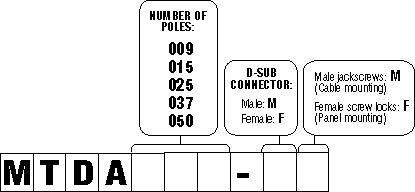

Type MTDA modules are offered with a choice of male and female D-Subminiature connectors, as well as a choice of male jackscrews or female screw locks. Industry standard 9, 15, 25, 37 and 50 pole versions are available.

Technical Data

Nominal Rated Voltage: 125 VAC
Nominal Rated Current: 3.5 A
Wire Stripping Length: 6 mm / 0.24 in.
Recommended Wire Size: 30-14 AWG
Screw Tightening Torque: max:
0.4 Nm / 3.5 lb-in.
D-Sub and mounting options may be chosen.

Options

(please consult factory)
• Metal cover
• Alternate male jackscrew length
• Feedback Option: D-Subminiature connector and terminal blocks mounted on the same side of the PCB
