D-Sub Miniature Interface Modules MTD

9 - 50 poles

Description

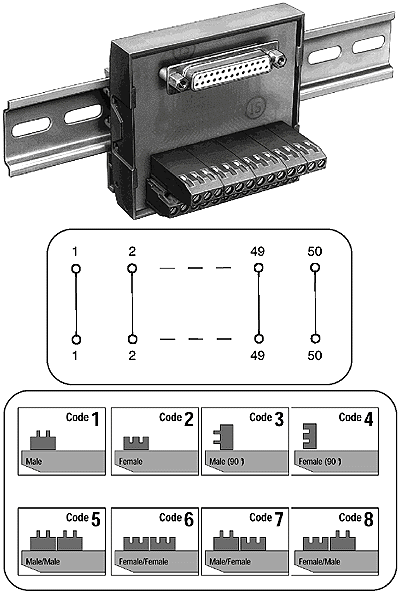

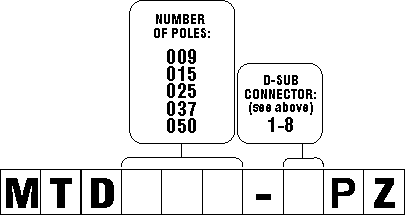

MTD D-Subminiature interface modules are intended for application in electronic industrial control circuits, such as microprocessor interfaces with conventional process control components. An assortment of male or female D-Sub configurations in 9, 15, 25, 37, and 50 poles are available.

The connector shell is independently grounded to the input connector. The D-Sub connectors are equipped with conventional threaded studs (UNC 4-40), and are compatible with all standard industrial hardware.

Technical Data

Nominal rated voltage: 125 VAC
Nominal rated current: 1.5 A
D-Sub and screw connectors may be chosen.

Dimensions

Height:
mounting rail:
H-35: 65 mm / 2.56 in.
G-32: 70 mm / 2.76 in.
H-15: 64 mm / 2.52 in.
Length:
9 poles: 47 mm / 1.85 in.
15 poles: 57.5 mm / 2.26 in.
25 poles: 80 mm / 3.15 in.
37 poles: 114 mm / 4.49 in.
50 poles: 147.5 mm / 5.81 in.
Width: 76 mm / 3.00 in.
