Description

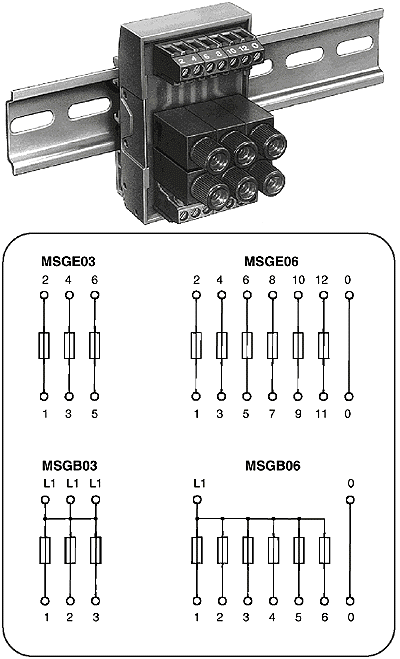

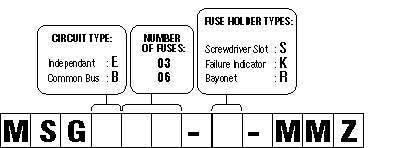

MSG fuse modules are available with 3 or 6 fuse holders.
Slotted head type, fault indicator type, or bayonet type are offered for
standard 5 x 20 mm and 5 x 25 mm glass cartridge fuses.
Depending on circuit requirements, independent fuse circuits or distribution
circuits with common bus are available. Combining fuse holders with our modular
system provides a simple method of installing equipment overload protection.
Typical applications include fusing of transformers, motors, and lamps, as well
as protection of electronic circuits. Selection of slow, intermediate, or fast
acting fuses enables the user to provide optimum protection for his equipment.
Fuses are not included.
Technical Data
Nominal voltage: 250 VAC
Current per path: 6.3 A max.
all circuits loaded: 4 A max. per path
at common bus L1: 16 A max.
Dimensions
Height:
mounting rail:
H-35: 64 mm / 2.52 in.
G-32: 69 mm / 2.72 in.
H-15: 63 mm / 2.48 in.
Length:
with 3 fuse holders: 24 mm / 0.95 in.
with 6 fuse holders: 47 mm / 1.85 in.
Width: 76 mm / 3.00 in.
|
