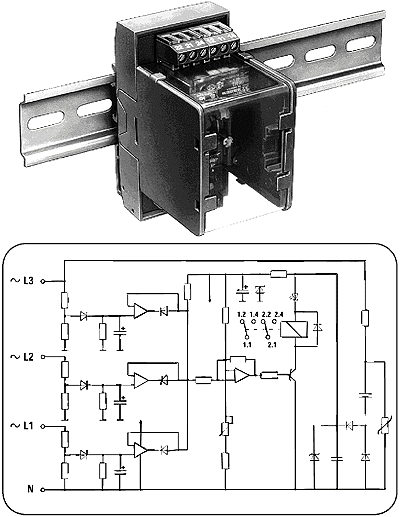

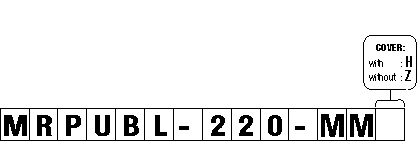

Description
With the three-phase system monitoring module, both a.c. and
three phase systems can be monitored for falling below a set value. The set
value is adjusted to 70% of the rated voltage according to VDE DIN 0108/0109
for emergency lighting installations. The module can monitor a maximum of three
random phases, each conducting a voltage of 220 V AC against zero.
The closed-circuit working electronics activate a relay (two changeover
contacts) on reaching the adjusted limiting values. Depending on the
parti-cular application, changeover to safety devices can take place isolated.
The delay (ON/OFF) of about 500 ms prevents the electronics from operating if
the set value is briefly not reached. This module is not suitable for neutral
loads.
Technical Data
Nominal monitored voltage:
220 / 380 VAC, 50-60 Hz
Operating Value: 70% of system voltage
Hysteresis of trigger point: 5% approximately
Trigger delay: 500 ms approximately
Output: DPDT relay with dry contacts
Switching capacity: 250 VAC / 1250 VA
24 VDC / 120 W
220 VDC / 30 W
Power consumption: 4 VA
Operating temperature:
-10° to 50°C / 14° to 122°F
Dimensions
Height:
mounting rail:
H-35: 84 mm / 3.31 in.
G-32: 89 mm / 3.51 in.
H-15: 83 mm / 3.27 in.
Length: 45 mm / 1.77 in.
Width: 90 mm / 3.54 in.
|
