Relay Modules MRPE

with SPDT relays, 16 A

Description

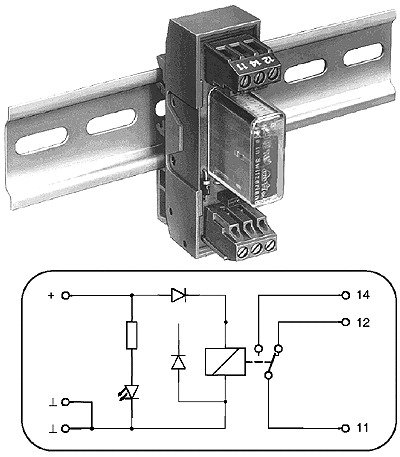

This module is intended for the reliable control of power circuits. The soldered relay is capable of switching high currents with one SPDT relay. A diode in series with the operating current prevents operation when incorrect polarities are applied. A LED shows relay operating status, and a diode across the coil protects the circuits from reverse voltage. Best switching characteristics are obtained when mounted with the input side downward, or in a horizontal plane.

Technical Data

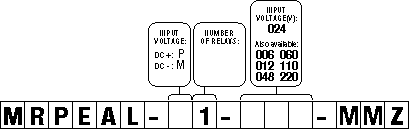

Operating voltages: as per “How to order” box
Rated Power: 0.7 W
Contact material: AgCdO
Rated switching voltage: 250 VAC
Continuous current: 16 A
Switching capacity: 4000 VA
Expected mechanical life: Ž 50 x 106 operations
Operate / release time:  10 ms /  5 ms
Relays according to DIN VDE 0110,
pollution degree 3 at 250 V.
Contact to contact breakdown voltage: 1000 V.
Operating temperature:
-25° to +40°C / -13° to +104°F

Dimensions:

Height:
mounting rail:
H-35: 56 mm / 2.20 in.
G-32: 61 mm / 2.41 in.
H-15: 55 mm / 2.17 in.
Length: 24 mm / 0.95 in.
Width: 76 mm / 3.00 in.
