Description

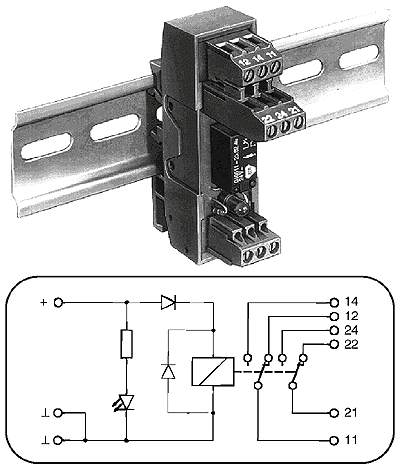

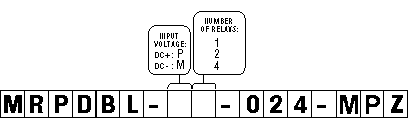

Relay module MRPD is equipped with 1, 2, or 4 “Dual In
Line” soldered relays with DPDT contacts. A diode in series with the
operating current prevents operation when incorrect polarities are applied. A
LED shows relay operating status, and a diode across the coil protects the
circuits from reverse voltage.
The advantages of this module, are its relatively high operating sensitivity
and great switching capability, coupled with an extremely low mecha-nical
profile. It finds application in interfaces of sensitive electronic devices and
power circuitry. Its sealed construction protects the relay from the
environment.
Technical Data
Operating voltage: 24 VDC + 10%
Rated Power: 0.7 W
Contact material: AgPd 40 / 60 +10µm Au
Rated max. switching voltage: 60 VDC, 125 VAC
Continuous current: 2 A
Switching capacity: 30 W, 60 VA
Expected mechanical life: Ž106 operations
Operate / release time: 6 ms / 4 ms
Operating temperature:
-25°to +40°C / -13° to +104°F
Dimensions:
Height:
mounting rail:
H-35: 65 mm / 2.56 in.
G-32: 70 mm / 2.76 in.
H-15: 45 mm / 1.77 in.
Length: 24 mm / 0.95 in.
Width: 76 mm / 3.00 in.
|
