Relay Modules MRPC

with DPDT relays, narrow version

Description

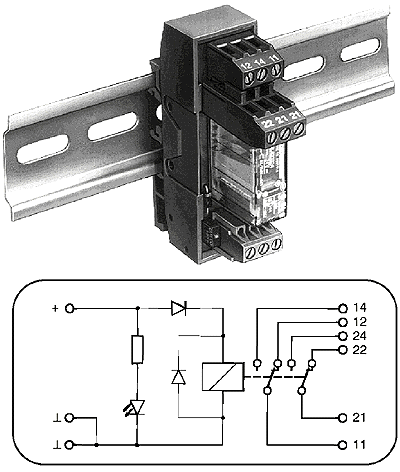

Relay module MRPC is smaller than types MRPA and MRPB. It is recommended where space is limited and requirements for closing/continuous current ratings and switching capacities are lower. The module may be equipped with 1, 2, 4, or 16 relays. Each relay, both plug-in and solder type, has DPDT contacts. For DC operation, a diode in series with the operating current prevents operation when incorrect polarities are applied. An LED shows relay operating status, and a diode across the coil protects the circuits from reverse voltage. The positive operating modules employ a negative bus, whereas the negative operating modules use a positive bus. In the case of AC operation, diodes are omitted. Best switching characteristics are obtained when mounted with the input side downward, or in a horizontal plane.

Technical Data

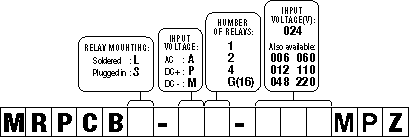

Operating voltages: as per “How to order” box
Rated Power: 0.7 W
Contact material: AgCdO
Rated switching voltage: 250 VAC
Switching / continuous current: 6 A / 4 A
Switching capacity: 1500 VA
Expected mechanical life: Ž 107 operations
Operate / release time:  8 ms /  10 ms
Relays according to DIN VDE 0110,
pollution degree 3 at 250 V.
Contact to contact breakdown voltage: 1000 V.
Operating temperature:
-25° to +40°C / -13° to +104°F

Dimensions:

Height:

with soldered relays:
mounting rail:
H-35: 69 mm / 2.72 in.
G-32: 74 mm / 2.92 in.
H-15: 68 mm / 2.68 in.
with plug-in relays:
mounting rail:
H-35: 65 mm / 2.56 in.
G-32: 70 mm / 2.76 in.
H-15: 64 mm / 2.52 in.

Length:
with 1 relay: 24 mm / 0.95 in.
with 2 relays: 47 mm / 1.85 in.
with 4 relays: 92 mm / 3.63 in.
with 16 relays: 250 mm / 9.84 in.

Width: 76 mm / 3.00 in.
