Relay Modules MRPB

with DPDT relays

Description

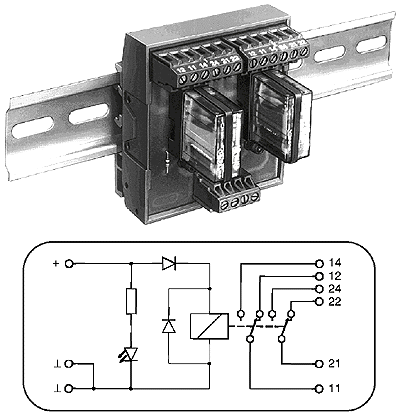

Relay module MRPB may be equipped with 1, 2, or 4 relays. Each relay, both the plug-in and solder type, have DPDT contacts. For DC operation, a diode in series with the operating current prevents operation when incorrect polarities are applied. An LED shows relay operating status, and a diode across the coil protects the circuits from reverse voltage. The positive operating modules employ a negative bus, whereas the negative operating modules use a positive bus. In the case of AC operation, diodes are omitted. Best switching characteristics are obtained when mounted with the input side downward, or in a horizontal plane.

Technical Data

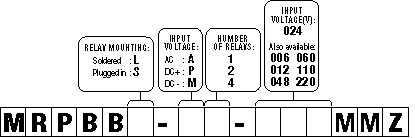

Operating voltages: as per “How to order” box
Rated Power: 0.7 W
Contact material: AgCdO
Rated switching voltage: 250 VAC
Switching / continuous current: 10 A / 6 A
Switching capacity: 2500 VA
Expected mechanical life: Ž 107 operations
Operate / release time: <8 ms / < 10 ms
Relays according to DIN VDE 0110,
pollution degree 3 at 250 V.
Contact to contact breakdown voltage: 1000 V.
Operating temperature: -25° to +40°C / -13° to +104°F

Dimensions:

Height:

with soldered relays:
mounting rail:
H-35: 69 mm / 2.72 in.
G-32: 74 mm / 2.92 in.
H-15: 68 mm / 2.68 in.

with plug-in relays:
mounting rail:
H-35: 56 mm / 2.20 in.
G-32: 61 mm / 2.40 in.
H-15: 55 mm / 2.17 in.

Length:
with 1 relay: 24 mm / 0.95 in.
with 2 relays: 69 mm / 2.72 in.
with 4 relays: 137 mm / 5.40 in.

Width: 76 mm / 3.00 in.
