Description

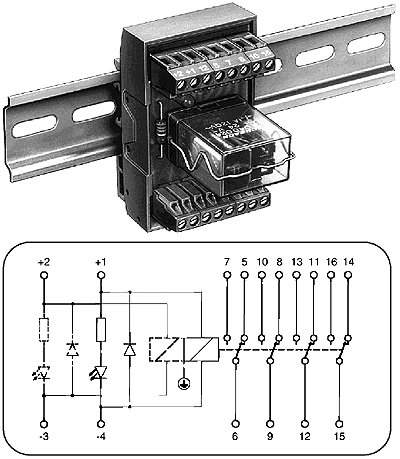

This module is designed for comb type plug-in relays size II.
They are equipped with either 1, 4, or 8 sockets, including hold-down clamps.
Technical Data

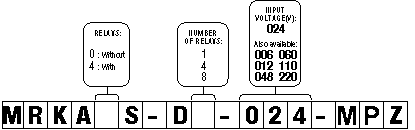

Operating voltages: as per “How to
order” box
Rated Power: 0.7 W
Contact material: silver, gold plated
Rated switching voltage: 115 VAC
Continuous current: 1 A
Switching capacity: 30 W / 50 VA
Expected mechanical life: Ž 107 operations
Operate / release time: 15 ms / 8 ms
Relay mounting: plug-in type
Relays according to DIN VDE 0110,
pollution degree 2 at 125 V.
Contact to contact breakdown voltage: 1000 V.
Dimensions:
Height:
mounting rail: H-35: 72 mm / 2.83 in.
G-32: 77 mm / 3.03 in.
H-15: 71 mm / 2.80 in.
Length:
with 1 relay: 47 mm / 1.85 in.
with 4 relays: 182 mm / 7.17 in.
with 8 relays: 362 mm / 14.25 in.
Width: 76 mm / 3.00 in.
|
