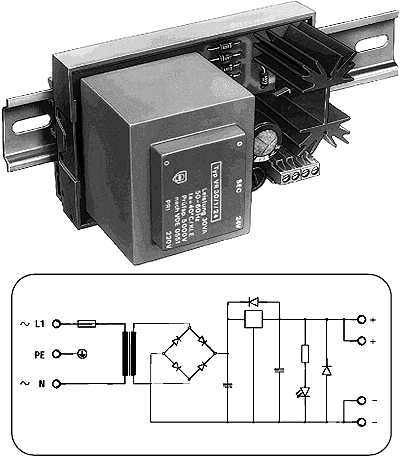

Regulated Power Supply Modules MPR

Description

Power supply module MPR is a compact, regulated supply, which is available in a number of different voltages and current capacities. Due to excellent regulation and small residual ripple, the module is particularly suitable for sensitive electronic control circuits. The primary circuit is fused.

Technical Data

Nominal input voltage:
220 VAC 50 Hz or 110 VAC 60 Hz
Nominal output voltage, VDC:
5, 12, 24, 30 (+/-15%)
Nominal output current, ADC: 0.5, 1.0, 2.0
Residual ripple: <0.5% at full load
Fused primary: 0.25A / 220 VAC, 0.5A / 110 VAC
Operating temperature:
-25° to 40°C / -13° to 104°F

Dimensions

Height:
mounting rail: H-35: 87 mm / 3.43 in.
G-32: 92 mm / 3.63 in.
H-15: 86 mm / 3.39 in.
Length: 114 mm / 4.49 in.
Width: 76 mm / 3.00 in.
