| Weco Series M-I/O | |
Opto Couplers M-I/Ofor Carrier Module MHST |
|
Description
M-I / O opto couplers are used in conjunction with MHST carrier modules.
They feature the following characteristics:
no moving parts,
thus providing bounce-free switching
integrated RC network for inductive loads
zero-crossing switch
no electromagnetic interference
spark-free operation
logic-compatible control
AC output, OAC, color: black |
| The OAC output opto couplers apply an AC voltage in the range 24 VAC (12 VAC) to 280 VAC (140 VAC) to a load, as the result of a computer command, at a continuous current of maximum 3A. |
DC output, ODC, color: red |
| The ODC output opto couplers apply a DC voltage of 5 VDC to 60 VDC (200 VDC) to a load, as the result of a computer command, at a continuous current of maximum 3 A (1 A). Inductive loads present no switching problems if they are wired with a free-wheeling diode. Typical loads: motors, contactors, and final control elements, etc. |
AC input, IAC, color: yellow |
| The IAC input opto couplers apply a corresponding logic signal to the computer, as the result of an AC voltage signal in the range 180 VAC (90 VAC) to 280 VAC (140 VAC). An internal protective circuit prevents destruction of the input as the result of voltage. |
DC input, IDC, color: white |
| The IDC input opto couplers apply a corresponding logic signal to the computer, as the result of a DC voltage signal in the range 4 VDC (10 VDC) to 16 VDC (32 VDC). An internal circuit ensures very good noise suppression and clean switching. Application: monitoring voltages (DC). |

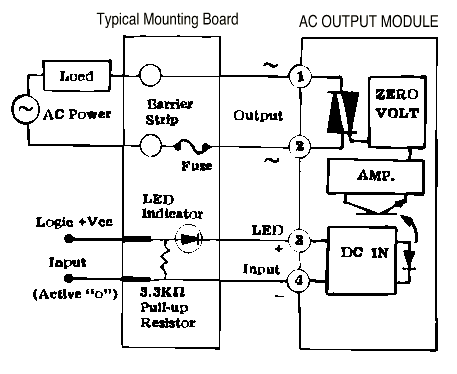

AC output OAC, black case |
||
 |
||
| Operating voltage range | ||
| (types M-OAC5, M-OAC15, M-OAC24): | 12-140 VDC | |
| (types M-OAC5A, M-OAC15A, M-OAC24A): | 24-280 VDC | |
| Current rating: | 3 Arms | |
| 1-cycle surge: | 40 A | |
| Control resistance | ||
| (types M-OAC5 and M-OAC5A): | 220
 |
|
| (types M-OAC15 and M-OAC15A): | 1
|
|
| (types M-OAC24 and M-OAC24A): | 2.2
|
|
| Control voltage range | ||
| (types M-OAC5 and M-OAC5A): | 3-8 VDC | |
| (types M-OAC15 and M-OAC15A): | 9-16 VDC | |
| (types M-OAC24 and M-OAC24A): | 18-32 VDC | |
| Control drop-out voltage: | 1 VDC | |
| Peak repetitive voltage: | 500 V | |
| Output voltage drop: | 1.6 V | |
| Off-state leakage: | 5 mArms | |
| Minimum load current: | 50 mA | |
| Insulation voltage (input to output): | 2500 Vrms | |
| Turn on / turn off time | 1/2 cycle max. | |

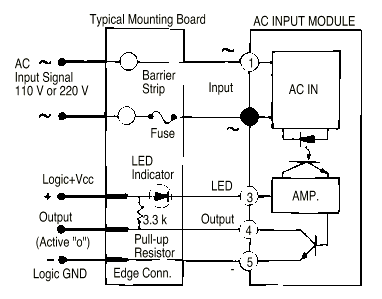

AC input IAC, yellow case |
|
 |
|
| Input voltage range | |
| (types M-IAC5 and M-IAC15): | 90-140 VAC |
| (types M-IAC5A and M-IAC15A): | 180-280 VAC |
| Maximum input current | |
| (types M-IAC5 and M-IAC15): | 10 mA |
| (types M-IAC5A and M-IAC15A): | 6.5 mA |
| Input resistance | |
| (types M-IAC5 and M-IAC5A): | 220
|
| (types M-IAC15 and M-IAC15A): | 1 K
|
| Logic supply voltage | |
| (types M-IAC5 and M-IAC5A): | 4, 5-6 VDC |
| (types M-IAC15 and M-IAC15A): | 12-18 VDC |
| Output transistor breakdown: | 30 VDC |
| Output current: | 25 mA DC |
| Output voltage drop: | 0.4 V at 25 mA |
| Max. off leakage current: | 100 µA at 30 VDC |
| Logic supply current | |
| (types M-IAC5 and M-IAC5A): | 12 mA |
| (types M-IAC15 and M-IAC15A): | 15 mA |
| Insulation voltage (input to output): | 2500 Vrms |
| Turn on / turn off time: | 20 ms max. |

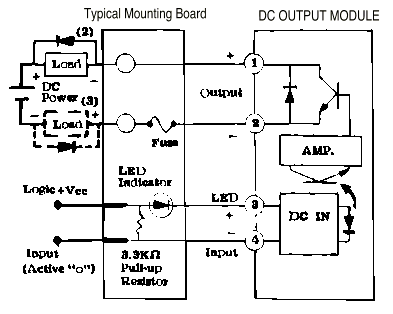

DC output ODC, red case |
|
 |
|
| Operating voltage range | |
| (types M-ODC5, M-ODC15 and M-ODC24): | 5-60 VDC |
| (types M-ODC5A and M-ODC15A): | 5-200 VDC |
| Load current rating | |
| (types M-ODC5, M-ODC15 and M-ODC24): | 3 A |
| (types M-ODC5A and M-ODC15A): | 1 A |
| 1 second surge: | 5 A |
| Control resistance | |
| (types M-ODC5 and M-ODC5A): | 220
|
| (types M-ODC15 and M-ODC15A): | 1 K
|
| (type M-ODC24): | 2.2 K
|
| Control voltage range | |
| (types M-ODC5 and M-ODC5A): | 3-8 VDC |
| (types M-ODC15 and M-ODC15A): | 9-18 VDC |
| (type M-ODC24): | 18-28 VDC |
| Control input current at control | |
| (types M-ODC5 and M-ODC5A): | 12 mA |
| (types M-ODC15 and M-ODC15A): | 15 mA |
| (type M-ODC24): | 18 mA |
| Control drop-out voltage: | min. 1 VDC |
| Off-state leakage | |
| (types M-ODC5, M-ODC15 and M-ODC24): | max. 1 mA |
| (types M-ODC5A and M-ODC15A): | max. 2 mA |
| Insulation voltage (input to output): | 2500 Vrms |
| Turn on / turn off time | |
| (types M-ODC5, M-ODC15 and M-ODC24): | 100 µs |
| (types M-ODC5A and M-ODC15A): | 200 µs0 |

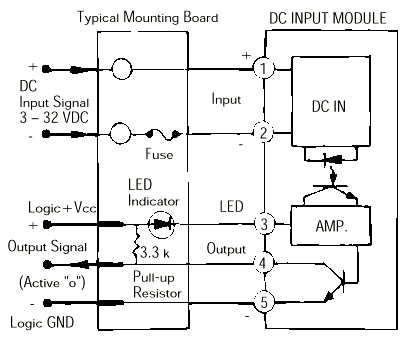

DC input IDC, white case |
|
 |
|
| Input voltage range | |
| (type M-IDC5B): | 4-16 VDC |
| (types M-IDC5, M-IDC15 and M-IDC24): | 10-32 VDC |
| Maximum input current | |
| (type M-IDC5B): | 45 mA |
| (types M-IDC5, M-IDC15 and M-IDC24): | 25 mA |
| Logic supply voltage | |
| (types M-IDC5B and M-IDC5): | 4, 5-6 VDC |
| (type M-IDC15): | 12-18 VDC |
| (type M-IDC24): | 20-30 VDC |
| Output transistor breakdown: | 30 VDC |
| Output current: | 25 mA DC |
| Output voltage drop: | 0.4 V at 25 mA |
| Output leakage: | 100 µA at 30 VDC |
| Insulation voltage (input to output): | 2500 Vrms |
| Turn on / turn off time | |
| (type M-IDC5B): | 50/100 µs |
| (types M-IDC5, M-IDC15 and M-IDC24): | 5 ms |
