Semiconductor Switch Module ( DC ) MHSD

Description

The switching capacity of this optically coupled semiconductor switch is 3-50 VDC at a maximum continuous current of 2 A and 4 A respectively. Due to the optical separation of control from output circuit, there is no electrical contact between control and output.

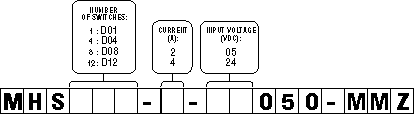

Technical Data

Control circuit

Control voltage: 5 / 12-24 VDC
Control current: 15 / 17.5-25 mA

Output circuit

Switching voltage range: 3-50 VDC
Leakage current: 1 µA
Load current max: 2 / 4 A
Peak current max. (1 sec.): 3 / 8 A
Voltage drop: 1.2 VDC

General Data

Isolation voltage (Input-output): 2500 VAC
Response time max.: 0.5 ms
Capacitance (Input-output): 15 pF
Operating temperature: -20° to 80°C / -4° to 176°F

Dimensions

Height:
mounting rail: H-35: 64 mm / 2.52 in.
G-32: 69 mm / 2.72 in.
H-15: 63 mm / 2.48 in.
Length:
1 switch 24 mm / 0.95 in.
4 switches 69 mm / 2.72 in.
8 switches 137 mm / 5.40 in.
12 switches 274 mm / 10.80.
Width: 76 mm / 3.00 in.
