Description
MFR voltage regulator modules are compact devices providing a
choice of regulated output DC voltages, with related input AC voltage ranges.
The modules feature well stabilized output DC voltage over wide AC input
voltage ranges, low residual ripple, and both thermal and fused overload
protection. An LED indicates operating status. These devices are particularly
well suited for application in control and monitoring systems and other
applications involving voltage sensitive electronic circuits.
Technical Data
Input Voltage:
(min.): 8 to 24 VAC (see table)
(max.): 25 to 30 VAC (see table)

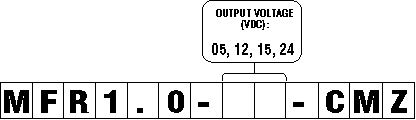

Output Voltage: 5, 12, 15, 24 VDC (+/- 0.5V)
Maximum continuous current: 1A
Residual Ripple: <0.5% at full load
Fuse: 1.6 A

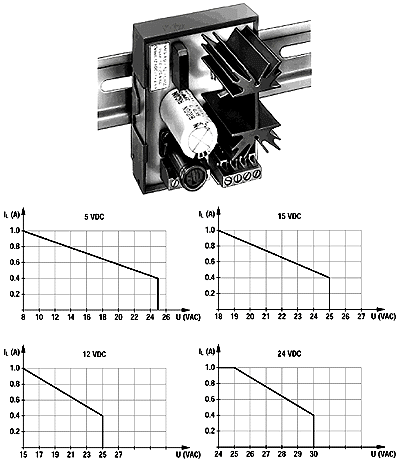

Regulated output voltage VDC: 5 12 15 24
Input voltage (max) VAC: 25 25 25 30
Input voltage (min) VAC: 8 15 18 24
Dimensions
Height:
mounting rail:
H-35: 64 mm / 2.52 in.
G-32: 69 mm / 2.72 in.
H-15: 63 mm / 2.48 in.
Length: 45 mm / 1.77 in.
Width: 76 mm / 3.00 in.
|
|
