Lamp Test Modules MDL

Description

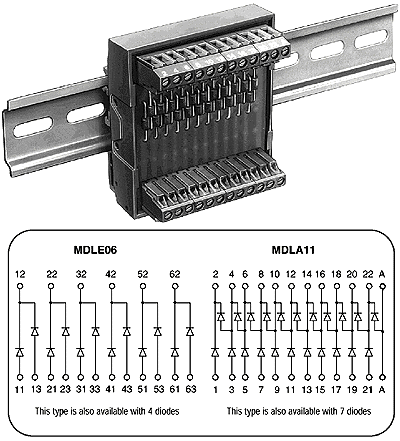

The lamp test modules are used for acquisition and decoupling of collected signals such as lamp verification circuits. Cathodes are linked in pairs in all standard versions. Type MDL E04 and E06 have individual anode inputs. Type MDL A07 and A11 has one set of individual anode inputs and one collective anode bus.

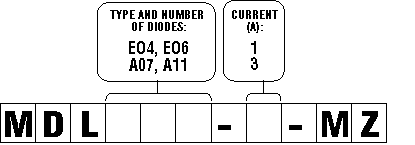

Technical Data

Max. operating voltage: 250 VAC
Diode reverse voltage: 1300 V
Diode nominal current, choice of: 1 or 3 A
Forward current per diode:
single diode load: 20 % of the nominal current
simultaneous load: 40 % of nominal current

Dimensions

Height:
mounting rail:
H-35: 51 mm / 2.01 in.
G-32: 56 mm / 2.20 in.
H-15: 50 mm / 1.97 in.
Length:
MDL E04, A07: 47 mm / 1.85 in.
MDL E06, A11: 69 mm / 2.72 in.
Width: 76 mm / 3.00 in.
