Description

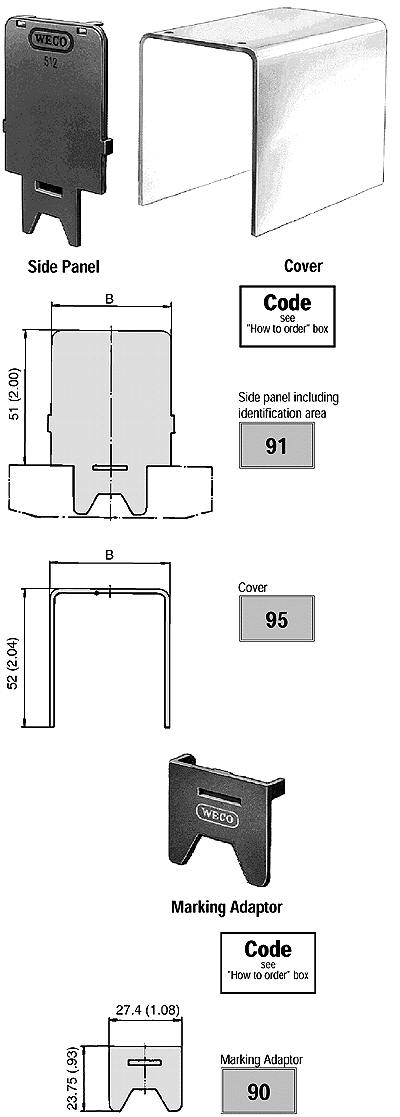

Marking adaptor (Option code 90):
(for modules without cover and side panels)
These carriers are attached to the side sections, and provide an identification
area of 25 x 6 mm / 0.98 x 0.24 in. Marking tags are not provided.
Side Panels and Covers (Option codes 91 and 95):
The side panels provide an identification area
of 18 x 8 mm / 0.71 x 0.32 in. at the top of the
panels which are then protected by the cover. Marking tags are not provided.

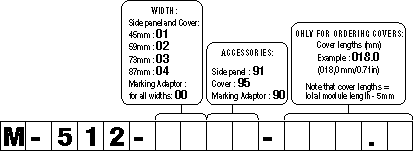

Covers and side panels are available in four widths:
Width 01: 45 mm / 1.77 in.
Width 02: 59 mm / 2.32 in.
Width 03: 73 mm / 2.87 in.
Width 04: 87 mm / 3.43 in.
Two side panels and one cover are required for one complete module unit. Cover
and side panel widths should correspond to the same width of the module
elements . It is possible to employ narrower or wider covers if necessary,
provided that neither exceeds the module housing width minus 8 mm / 0.32 in.
The inner height of both cover and side panel is always 50 mm / 1.97 in. above
the printed circuit board. Covers and side panels interlock to ensure solidity.
The length must always be 5 mm / 0.2 in. shorter than the total module length.
Material
Side Panels and Marking Adaptor:
Polyamide, self extinguishing to UL 94, V-2,
color grey
Temperature limits:
Short time: 140°C / 284°F
Continuous: 80°C / 176°F
Low limit: -40°C / -40°F
Covers: PVC, transparent
Temperature limit:
Continuous: -20° to 70°C / -4° to 158°F
|
|
