| Weco Series LKV | |
Series LKVDIN 43659 6.5 foot lengths |
|
Description |
|

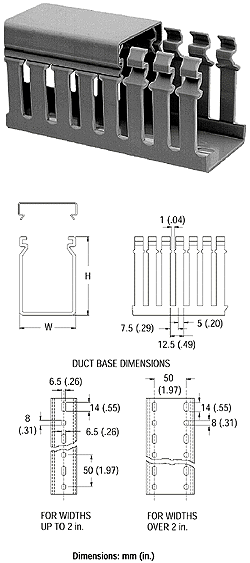

| This wiring duct system is designed to the requirements of DIN 43659 standards. Its major difference with series LK4 is that the slots and teeths are somewhat larger. This system should be specified for any application that must meet DIN 43659 standards. |
|
Technical Data
Standard
Length: 78.7 in. / 2 meters
Approval Information
CSA File No.
LR25478-2
Material
Rigid PVC, grey -
RAL 7030
Temperature Limits:
Short time: 80°C / 176°F
Continuous: 60°C / 140°F
Low Limit: -20°C / -4°F
Comparative Tracking Index: CTI > 400
Recommended Number of Wires
| The table below lists a recommended quantity of wires for
Series LK4 based on 50% fill capacity of the duct. Actual values may vary due
to the method of wire installation. |
| Duct type | 12 AWG (.158 in. O.D.) |
14 AWG (.139 in. O.D.) |
22 AWG (.065 in. O.D.) |
|---|---|---|---|
| LKV-1-1 | 20 | 25 | 115 |
| LKV-1.5-1 | 30 | 40 | 175 |
| 45 | 60 | 260 | |
| LKV-2-1 | 40 | 50 | 230 |
| LKV-2-1.5 | 60 | 75 | 345 |
| LKV-2-2 | 80 | 100 | 460 |
| LKV-2-3 | 120 | 150 | 670 |
| LKV-3-1 | 60 | 75 | 345 |
| LKV-3-1.5 | 90 | 115 | 520 |
| LKV-3-2 | 120 | 150 | 690 |
| LKV-3-3 | 175 | 225 | 1040 |
| LKV-3-4 | 235 | 300 | 1375 |
| LKV-3-5 | 295 | 375 | 1725 |
| LKV-4-1.5 | 120 | 150 | 690 |
| LKV-4-2 | 160 | 300 | 920 |
| LKV-4-3 | 235 | 300 | 1375 |
| LKV-4-4 | 310 | 400 | 183 |
|

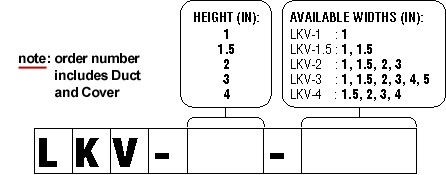

| Ordering Information |
