Weco Series EURO-4 Accessories

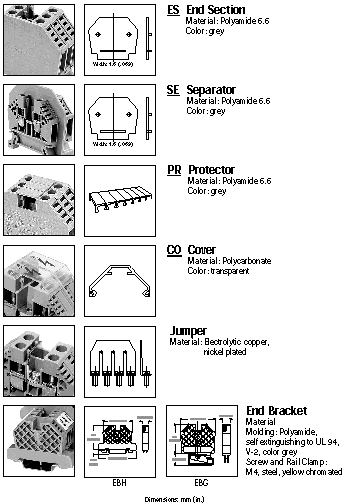

Standard Accessories

End Section

End sections provide insulation for the exposed metal components of the last terminal block of an assembly. Interlocking pins secure the end section in place while allowing easy removal and insertion.

Separator

Separators are used to visually divide sections
of terminal blocks. The raised barrier also provides additional insulation but does not allow the use
of jumpers to connect neighboring blocks.

Cover

Certain high voltage or current applications require the use of terminal block covers for increased insulation and additional circuit protection. The transparent Polycarbonate covers allow the marking tag area to be visible after installation.

Jumper

Jumpers are used to electrically connect two or more terminal blocks. Depending on the type chosen, jumpers are available up to 82 positions and are delivered with mounting screws. When installed, the jumpers are recessed in the terminal block molding to reduce the risk of accidental shock.

End Bracket

End brackets are used to secure a terminal block assembly to the DIN rail, and clamp directly to the rail by means of a clamping screw. A typical application requires two end brackets. Depending on the mounting rail used, several end bracket versions are offered.

Version EBG mounts to G-32 mounting rails.
Version EBH mounts to H-35 mounting rails.

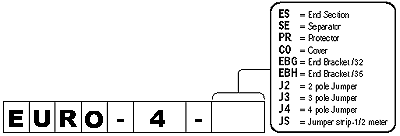

Ordering Information
