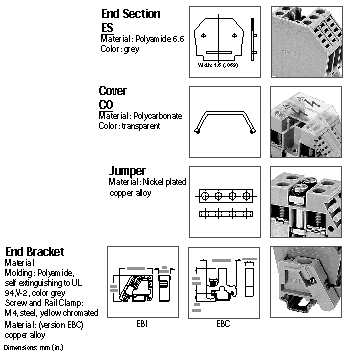

Standard Accessories

End Section

End sections provide insulation for the exposed metal components of the last terminal block of an assembly. Interlocking pins secure the end section in place while allowing easy removal and insertion.

Cover

Certain high voltage or current applications require the use of terminal block covers for increased insulation and additional circuit protection. The transparent Polycarbonate covers allow the marking tag area to be visible after installation.

Jumper

Jumpers are used to electrically connect two or more terminal blocks. They are available up to 82 positions and are delivered with mounting screws. When installed, the jumpers are recessed in the terminal block molding to reduce the risk of accidental shock.

End Bracket

End brackets are used to secure a terminal block assembly to the DIN rail, and clamp directly to the rail by means of a clamping screw. A typical application requires two end brackets. Depending on the application, two end bracket versions are offered.

Version EBI (with polyamide molding)
Version EBC (copper alloy)
