| Weco Series
DFG-EN |
| |

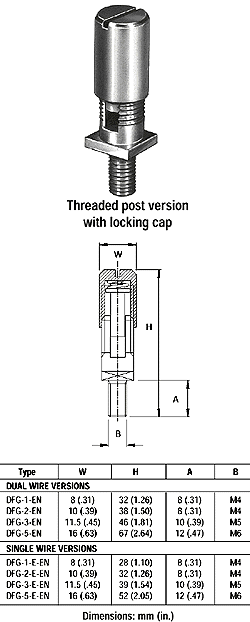

Grounding terminals Series DFG-EN
|
| |
|
Description
|
|
| Grounding terminals DFG-EN are designed for
mounting on pre-tapped metal surfaces and provide safe and reliable connection
of stripped, unterminated, stranded or solid copper wires.
A securing nut is recommended at the base of the threaded post to prevent
twisting. Types DFG-EN feature a spring loaded locking cap which provides an
explosion proof connection in accordance with VDE 0170 / 0171.
|
|
Technical
Data
Rated
Current:
(maximum load at 40°C / 104°F ambient temperature)
DFG-1: 30A
DFG-2: 39A
DFG-3: 53A
DFG-5: 95A
Nominal cross section:
DFG-1-E-EN:2.5 mm2 / 3874 mils2
DFG-2-E-EN:4 mm2 / 6199 mils2
DFG-3-E-EN:6 mm2 / 9299 mils2
DFG-5-E-EN:16 mm22 / 24796 mils2
DFG-1-EN:2 x 2.5 mm2 / 2 x 3874 mils2
DFG-2-EN:2 x 4 mm2 / 2 x 6199 mils2
DFG-3-EN:2 x 6 mm2 / 2 x 9299 mils2
DFG-5-EN:2 x 16 mm2 / 2 x 24796 mils2
Recommended wire size:
DFG-1-EN: 2 x 12 AWG
DFG-2-EN, DFG-3-EN: 2 x 10 AWG
DFG-5-EN: 2 x 6 AWG
(DFG-E-EN versions are suitable for one wire)
Wire Stripping Length:
DFG-1-EN: 8 mm / .31 in.
DFG-2-EN: 10 mm / .39 in.
DFG-5-EN: 16 mm / .63 in.
DFG-3-EN: 12 mm / .47 in.
Material
Terminal
body and cap: nickel plated brass
Spiral spring: spring steel, blue annealed
Upper Temperature limit: 240°C / 464°F

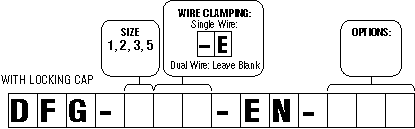

Options
| Mark in Order
Box |
Description |
| G05: |
Gold Plating (5 micro inches)
|
| G30: |
Gold Plating (30 micro inches)
|
| S30: |
Silver Plating (30 micro inches
|
