Weco Series 71 Motor Terminals


Series 71 Motor Terminals

6 poles



Description

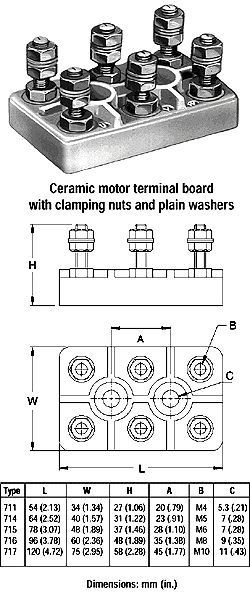

These steatite motor terminal boards have two recessed mounting holes; they feature separating walls molded between each clamping bolt to help prevent unwanted contact between adjacent contacts. They are supplied with plain washers and brass nuts but without jumpers. However, series 75 jumpers are available if needed.

Technical Data

Nominal cross section:
type 711 : 1.5 mm2 / 1550 mils2
type 714 : 2 x 25 mm2 / 2 x 3874 mils2
type 715 : 2 x 6 mm2 / 2 x 9299 mils2
type 716 : 2 x 16 mm2 / 2 x 24796 mils2
type 717 : 2 x 35 mm2 / 2 x 54241 mils2

Recommended wire size (max):
type 711 : 14 AWG
type 714 : 10 AWG or 2 x 14 AWG
type 715 : 6 AWG or 2 x 10 AWG
type 716 : 3 AWG or 2 x 6 AWG
type 717 : 2/0 AWG or 2 x 2 AWG

Material

Molding: Glazed steatite, KER 220 DIN 40685, color white
Threaded Post: blank brass
Nut: blank brass DIN 934
Washers: zinc plated steel DIN 433
Upper Temperature limit: 240°C / 464°F

Options

Mark in Order Box Description
G05: Gold Plating (5 micro inches)
G30: Gold Plating (30 micro inches)
S30: Silver Plating (30 micro inches)
