Weco Series 604 |
Series 60416.5 mm spacing 1 to 4 poles |
|
Description |
|

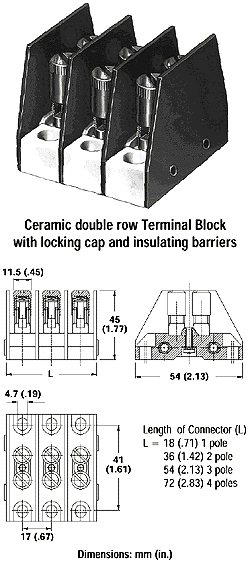

These double row ceramic terminal blocks are
provided with insulating separators to provide large-area shock-hazard
protection; these separators provide the adequate air gaps and creepage
distances required by the VDE 0110 standard. The brass mantle terminals are
screwed and potted into the porcelain base for insulation and locking of the
terminals. |
|
Technical Data
Center to
Center Spacing:
17 mm / .669 in.
Nominal Cross Section:
16 mm2 / 24796 mils2
Recommended wire size:
8 AWG
Wire Stripping Length:
12 mm / .47 in.
Recommended Operating Current and Voltage:
(maximum load at 40°C / 104°F ambient temperature)
82 A, 500V.
Material
Molding: Glazed porcelain, KER 111, DIN 40685,
color white
Insulating Barrier: hard paper type 2061,
DIN 7735, color brown
Terminal Body and cap: nickel plated brass
Spiral Spring: spring steel, blue annealed
Upper temperature limit: 240°C / 464°F
Options
Larger pole
configurations can be supplied on request. Please consult an e-disti
representative.
Locking Caps
please refer to "How to Order Box"
![]() |
Ordering Information |
