Weco Series 603


Series 603

13 mm spacing 1 to 4 poles




Description

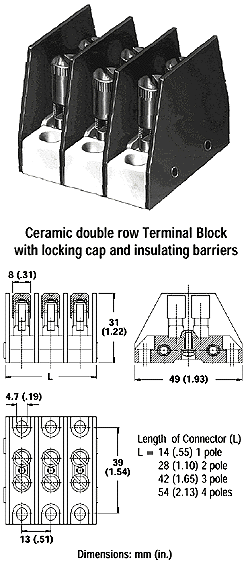

These double row ceramic terminal blocks are provided with insulating separators to provide large-area shock-hazard protection; these separators provide the adequate air gaps and creepage
distances required by the VDE 0110 standard. The brass mantle terminals are screwed and potted into the porcelain base for insulation and locking of the terminals.

Technical Data

Center to Center Spacing:
13 mm / .512 in.
Nominal Cross Section:
6 mm2 / 9299 mils2
Recommended wire size:
12 AWG
Wire Stripping Length:
8 mm / .31 in.
Recommended Operating Current and Voltage:
(maximum load at 40°C / 104°F ambient temperature)
44 A, 500V.

Material

Molding: Glazed porcelain, KER 111, DIN 40685, color white
Insulating Barrier: hard paper type 2061,
DIN 7735, color brown
Terminal Body and cap: nickel plated brass
Spiral Spring: spring steel, blue annealed
Upper temperature limit: 240°C / 464°F

Options

Larger pole configurations can be supplied on request. Please consult an e-disti representative.

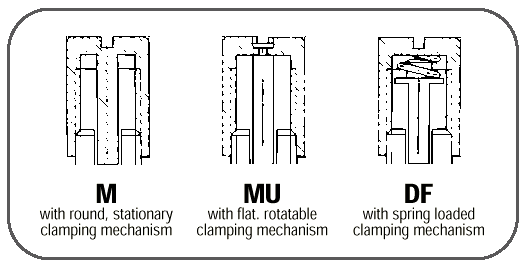

Locking Caps
please refer to "How to Order Box"


Ordering Information
