Series 560
2
poles
|
| |
|
| |
|
Description
|
|
| The use of steatite ceramic material in the body
of the terminal block provides great resistance to damage from high
temperatures. To simplify mounting of these blocks, an 18 mm x 2 mm slot is
molded into the base of each terminal block; the optional type I-16 mounting
rail has been designed to fit into this slot to provide a secure installation
which prevents the block from twisting. Most design needs have been met with
the availability of a variety of hardware. For those designs requiring the
greatest resistance to high temperatures, the 560-K4DF-V2A is supplied with all
stainless steel metal components and is able to resist up to 500°C
(940°F). A marking area is provided for felt or ink pens.
|
|
Technical
Data
Center to
Center Spacing: 22.5 mm / .886 in.
Nominal Cross Section: 2.5 mm2 / 3874
mils2
without binding clip: 4 mm2 / 6199 mils2
Wire Stripping Length: 8 mm / .31 in.
Approval
Information
UL File No. E69841
CSA File No. LR24322
| Rating |
Current (A) |
Voltage (V) |
AWG |
| UL |
20 |
300 |
20-12 |
| CSA |
25 |
600 |
20-12 |
Material
All types
(except 560-K4DF-V2A):
Molding: Steatite, KER 220 DIN 40685, color white
Terminal Body: nickel plated brass
Binding Clip: zinc plated steel
Lock Washer: zinc plated steel
Screw: M4, zinc plated steel, yellow chromated
Screw Tightening Torque: max: 1.2 Nm / 10 lb-in.
Upper temperature limit: 240°C / 464°F
type 560-K4DF-V2A:
Molding: Steatite, KER 220 DIN 40685, color white
Terminal Body: stainless steel
Binding Clip: stainless steel
Lock Washer: B4 DIN 127, stainless steel
Screw: M4, stainless steel
Screw Tightening Torque: max: 1.2 Nm / 10 lb-in.
Upper temperature limit: 500°C / 940°F
type I-16 Mounting Rail:
zinc plated steel, yellow chromated

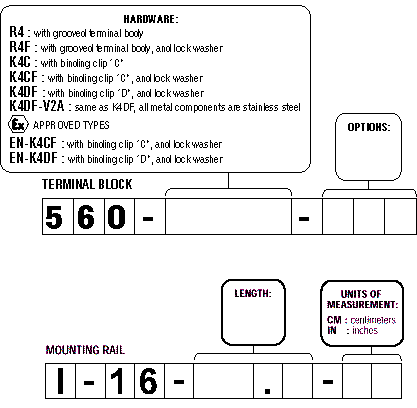

Options
| Mark in Order
Box |
Description |
| G05: |
Gold Plating (5 micro inches)
|
| G30: |
Gold Plating (30 micro inches)
|
| S30: |
Silver Plating (30 micro
inches) |
