| Weco Series
433 and 433-DS |
| |
Types 433 and 433-DS
16 mm spacing 3 poles
|
| |
|
Technical
Data
Center to
Center Spacing: 16 mm / .630 in.
Nominal Cross Section:4 mm2 / 6199 mils2
Wire Stripping Length: 7 mm / .28 in.
Approval
Information
UL File No.
E69841
CSA File No. LR24322
433-L, and 433-Z
| Rating |
Current (A) |
Voltage (V) |
AWG |
| UL |
25 |
250 |
10/18-10 |
| CSA |
20 |
300 |
22-10 |
433-L-DS, and 433-Z-DS
| Rating |
Current (A) |
Voltage (V) |
AWG |
| UL |
25 |
250 |
10/18-10 |
| CSA |
20 |
300 |
22-10 |
Breakdown Voltage: 4000 V.
Material
Molding: Polyamide, self extinguishing to UL
94,
V-2, color grey
Temperature Limits:
Short time: 140°C / 284°F
Continuous: 80°C / 176°F
Low limit: -40°C / -40°F
Comparative Tracking Index: CTI > 600
Oxygen Index Rating: 25%
Terminal Body and tabs: nickel plated brass
Wire Protector: tin plated copper alloy
Screw: M3.5, zinc plated steel, yellow chromated
Maximum Torque: 0.8 Nm / 7.0 lb-in.

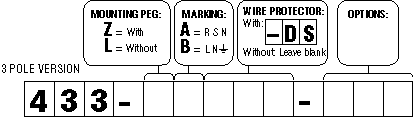

Options
| Mark in Order
Box |
Description |
| SM: |
Special Marking (please provide
sketch)
|
| BS: |
Brass Screws
|
| PS: |
Passivated Steel Screws
|
| G05: |
Gold Plating (5 micro inches)
|
| G30: |
Gold Plating (30 micro inches)
|
| S30: |
Silver Plating (30 micro
inches)
|
Note: If more than one option is required,
please separate each option with a dash (-).
