| Weco Series 422 to 426 | |
Types 422 to 42614 mm spacing 2 to 6 poles |
|
Description |
|
| The 422-426 types provide screw/tab connectors with up to 6 poles. Each of the poles can be provided with 4 different combinations of tabs: three 2.8 mm (0.110 in.) tabs, two 4.8 mm (0.187 in.) tabs, or one or two 6.3 mm (0.250 in.) tabs. Blocks with 3 or 4 positions can be supplied with a molded peg (-Z designation) in the base of the block; this allows for secure fastening to the panel or chassis using only one screw if a suitable hole has been provided. |
|
Technical Data
Center to
Center Spacing: 14 mm / .551 in.
Nominal Cross Section:
2.5 mm2 / 3874 mils2 (screw side)
Up to 6 mm2 / 9299 mils2 (tab side)
Wire Stripping Length: 7 mm / .28 in.
Approval Information
UL File No.
E69841
CSA File No. LR24322
422 to 426 (non DS versions)
| Rating | Current (A) | Voltage (V) | AWG |
|---|---|---|---|
| UL | 20 | 250 | 10/14-12 |
| CSA | 20 | 300 | 20-10 |
422 to 426 (DS versions)
| Rating | Current (A) | Voltage (V) | AWG |
|---|---|---|---|
| UL | 20 | 250 | 10/18-12 |
| CSA | 20 | 300 | 22-12 |
Breakdown Voltage: 4000 V.
Material
Molding: Polyamide, self extinguishing to UL
94, V-2, color grey
Temperature Limits:
Short time: 140°C / 284°F
Continuous: 80°C / 176°F
Low limit: -40°C / -40°F
Comparative Tracking Index: CTI > 600
Oxygen Index Rating: 25%
Terminal Body and tab: nickel plated brass
Wire Protector: tin plated copper alloy
Screw: M3, zinc plated steel, yellow chromated
Maximum Torque: 0.5 Nm / 4.5 lb-in.
Options
| Mark in Order Box | Description |
|---|---|
| CN: | Consecutive Numbering (hot stamped white numbers) |
| SM: | Special Marking (please provide sketch) |
| BS: | Brass Screws |
| PS: | Passivated Steel Screws |
| G05: | Gold Plating (5 micro inches) |
| G30: | Gold Plating (30 micro inches) |
| S30: | Silver Plating (30 micro inches) |
Note: If more than one option is required,
please separate each option with a dash (-).
 |

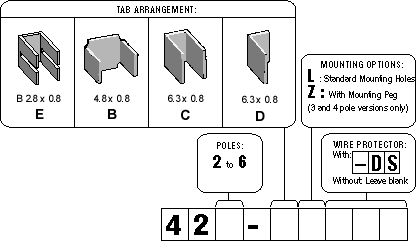

| Ordering Information |
