| Weco Series
411-B, 411-BML, and 411-S |
| |
Type 411-B, 411-BML and 411-S
2,4,6 or 8 poles
|
| |
|
| |
|
Description
|
|

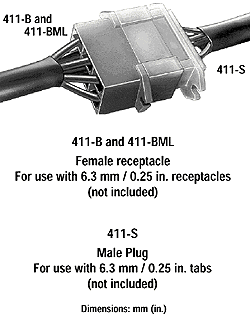

| The 411 series coupling system is composed of a
female receptacle and a male plug whose design prevents improper mating of the
two parts. The 6.3 mm (0.25 in.) metal components (which are not supplied by
WECO) are inserted into the respective WECO plastic couplings and are held
securely into the coupling after wiring.
|
|
Technical
Data

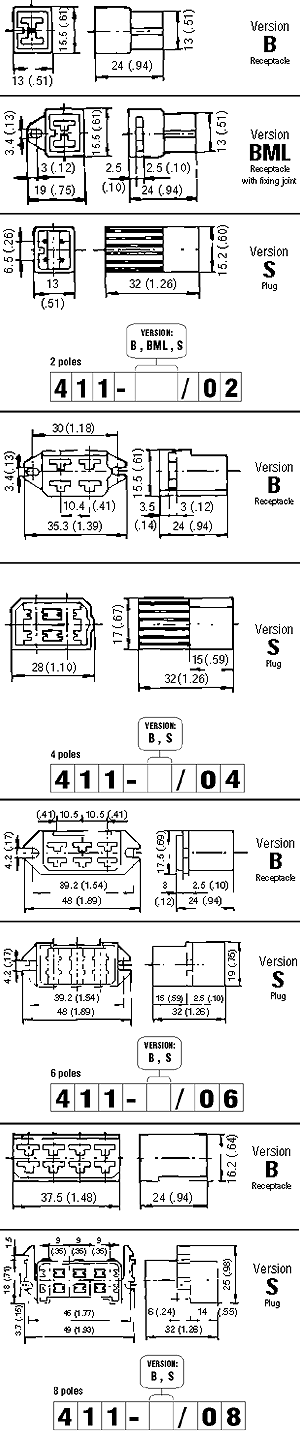

Center to
Center Spacing:
Varies depending on product selected
Nominal Cross Section:
6 mm2 max. / 9299 mils2 max.
Breakdown Voltage: 4000 V.
Material
Molding: Polyamide, self extinguishing to UL
94, V-2, natural
Temperature Limits:
Short time: 140°C / 284°F
Continuous: 80°C / 176°F
Low limit: -40°C / -40°F
Comparative Tracking Index: CTI > 600
Oxygen Index Rating: 25%
