| Weco Series
36-M and 36-MU |
| |

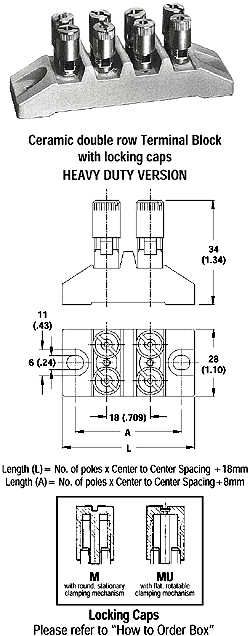

Series 36-M and 36-MU
18 mm spacing 2,3,4 and 6 poles
|
| |
|
Technical
Data
Center to
Center Spacing: 18 mm / .709 in.
Nominal Cross Section:
16 mm2 / 24796 mils2
Wire Stripping Length:
12 mm / .47 in.
Recommended operating current, voltage,
and wire range:
(maximum load at 40°C / 104°F ambient temperature)
| Current (A) |
|
Voltage (V) |
|
AWG |
| 82 |
|
500 |
|
14-8 |
Material
Molding: Glazed steatite KER 220, DIN 40685,
color white
Upper temperature limit: 240°C / 464°F
Terminal Body and Cap: nickel plated brass
Options

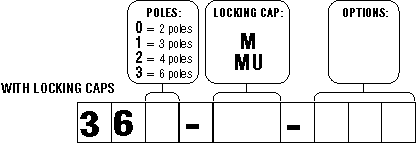

| Mark in Order
Box |
Description |
| I: |
PVC insulating
caps for additional protection
|
