Technical Data

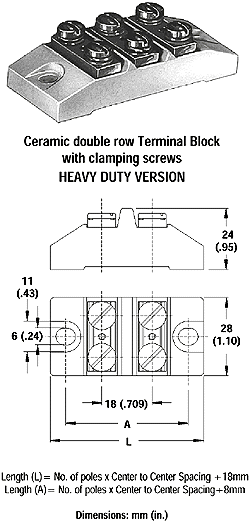

Center to Center Spacing: 18 mm / .709 in.
Nominal Cross Section:
6 mm2 / 9299 mils2
With cable lugs: 10 mm2 / 15498 mils2
Wire Stripping Length:
10 mm / .39 in.
Recommended operating current, voltage, and wire range:
(maximum load at 40°C / 104°F ambient temperature)
| |
Current (A) |
Voltage (V) |
AWG |
| |
61 |
500 |
14-8 |
Material
Molding: Glazed steatite KER 220, DIN 40685,
color white
Upper temperature limit: 240°C / 464°F
Terminal Body: nickel plated brass
Screw: M5, zinc plated steel, yellow chromated
Screw Tightening Torque: max: 2 Nm / 16 lb-in.

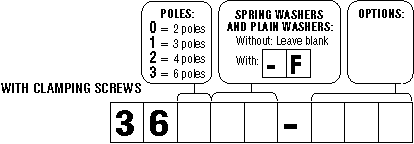

Options
| Mark in Order
Box |
Description |
| BS: |
Brass screws |
| G05: |
Gold Plating (5 micro inches)
|
| G30: |
Gold Plating (30 micro inches)
|
| S30: |
Silver Plating (30 micro
inches) |
|
 |
