| Weco Series
359 and 359-F |
| |

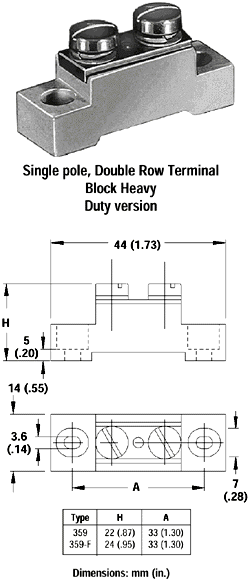

Types 359 and 359-F
single poles
|
| |
|
| |
|
Description
|
|
| The -F versions of the Type 359 flat screw
terminal blocks are supplied with a flat washer and a DIN 127 type spring
washer; the other versions are only supplied with a screw. These blocks are
supplied with two mounting holes cast into the ends of the porcelain molding.
|
|
Technical
Data
Nominal
Cross Section:
10 mm2 / 15498 mils2 (with cable lug)
6 mm2 / 9299 mils2
Wire Stripping Length:
10 mm / .39 in.
Recommended operating current, voltage, and wire range:
(maximum load at 40°C / 104°F ambient temperature)
| Current (A) |
|
Voltage (V) |
|
AWG |
| 44 |
|
500 |
|
18-10 |
Material
Molding: Glazed steatite KER 220, DIN 40685,
color white
Upper temperature limit: 240°C / 464°F
Terminal Body: nickel plated brass
Screw: M5, zinc plated steel, yellow chromated
Screw Tightening Torque: max: 2.0 Nm / 16 lb-in.

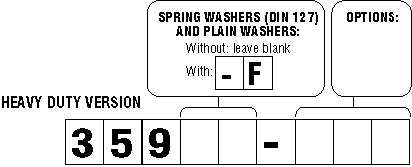

Options
| Mark in Order
Box |
Description |
| BS: |
Brass screws |
| G05: |
Gold Plating (5 micro inches)
|
| G30: |
Gold Plating (30 micro inches)
|
| S30: |
Silver Plating (30 micro
inches) |
