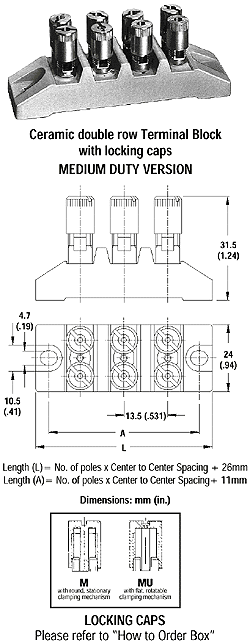

Weco Series 34-M and 34-MU


Series 34-M and 34-MU

14.5 mm spacing 3 and 6 poles



Technical Data

Center to Center Spacing: 14.5 mm / .57 in.
Nominal Cross Section:
4 mm2 / 6199 mils2
Wire Stripping Length:
9 mm / .35 in.
Recommended operating current, voltage, and wire range:
(maximum load at 40°C / 104°F ambient temperature)

Current (A)   Voltage (V)   AWG
34   500   14-10


Material

Molding: Glazed steatite KER 220 , DIN 40685, color white
Upper temperature limit: 240°C / 464°F
Terminal Body and Cap: nickel plated brass

Options

Mark in Order Box Description
I: PVC insulating caps for additional protection

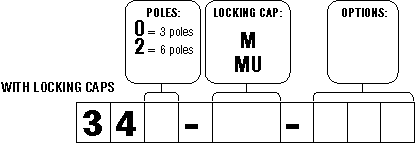

Ordering Information
