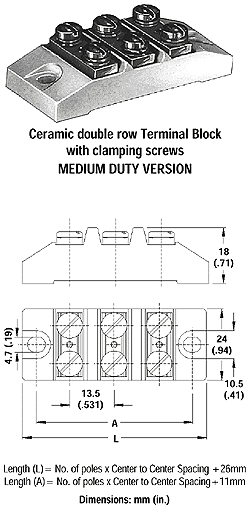

Weco Series 34 and 34-F


Series 34 and 34-F

14.5 mm spacing 3 and 6 poles



Technical Data

Center to Center Spacing: 13.5 mm / .531 in.
Nominal Cross Section:
4 mm2 / 6199 mils2
With cable lug: 6 mm2 / 9299 mils2
Wire Stripping Length:
10 mm / .39 in.
Recommended operating current, voltage, and wire range:
(maximum load at 40°C / 104°F ambient temperature)

Current (A)   Voltage (V)   AWG
61   500   14-8

Material

Molding: Glazed steatite KER 220 , DIN 40685, color white
Upper temperature limit: 240°C / 464°F
Terminal Body: nickel plated brass
Screw: M4, zinc plated steel, yellow chromated
Screw Tightening Torque: max: 1.2 Nm / 10 lb-in.

Options

Mark in Order Box Description
BS: Brass screws
G05: Gold Plating (5 micro inches)
G30: Gold Plating (30 micro inches)
S30: Silver Plating (30 micro inches)

Note: If more than one option is required, please separate each option with a dash (-).

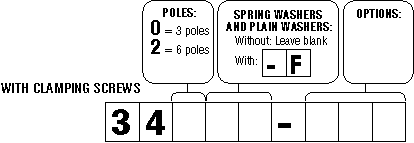

Ordering Information
