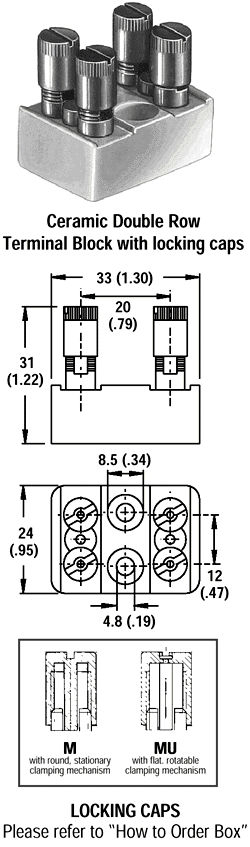

Weco Series 339-K-M and 339-K-MU


Types 339-K-M and 339-K-MU

2 poles



Technical Data

Center to Center Spacing: 20 mm / .790 in.
Nominal Cross Section:
4 mm2 / 6199 mils2
Wire Stripping Length:
9 mm / .35 in.
Recommended operating voltage and wire range:
(maximum load at 40°C / 104°F ambient temperature)

Current(A)   Voltage (V)   AWG
500   44   18-10


Material

Molding: steatite KER 220, DIN 40685, color white
Upper temperature limit: 240°C / 464°F
Terminal Body and Cap: nickel plated brass

Options

Mark in Order Box Description
G05: Gold Plating (5 micro inches)
G30: Gold Plating (30 micro inches)
S30: Silver Plating (30 micro inches)
I: PVC insulating caps for additional protection

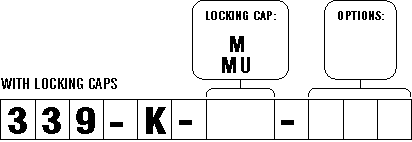

Ordering Information
