| Weco Series
339-K and 360-K |
| |
Series 339-K and 360-K
2
poles
|
| |
|
Technical
Data

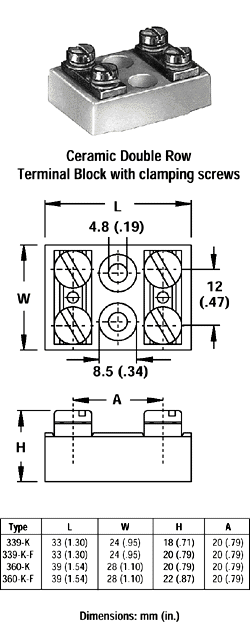

Center to
Center Spacing: 20 mm / .790 in.
Nominal Cross Section:
Series 339-K : 4 mm2 / 6199 mils2
Series 360-K : 6 mm2 / 9299 mils2
Series 339-K : 6 mm2 / 9299 mils2 (with
cable lug)
Series 360-K : 10 mm2 / 15498 mils2
(with cable lug)
Wire Stripping Length:
Series 339-K : 10 mm / .39 in.
Series 360-K : 9 mm / .35 in.
Recommended operating voltage and wire range:
(maximum load at 40°C / 104°F ambient temperature)
Series 339-K:
| Voltage (V) |
|
Current(A) |
|
AWG |
| 380 |
|
34 |
|
18-12 |
Series 360-K,:
| Voltage (V) |
|
Current(A) |
|
AWG |
| 500 |
|
44 |
|
18-10 |
Material
Molding: steatite KER 220, DIN 40685, color
white
Upper temperature limit: 240°C / 464°F
Series 339-K:
Screw: M4, zinc plated steel, yellow chromated
Screw Tightening Torque: max: 1.2 Nm / 10 lb-in.
Series 360-K:
Screw: M5, zinc plated steel, yellow chromated
Screw Tightening Torque: max: 2 Nm / 16 lb-in.

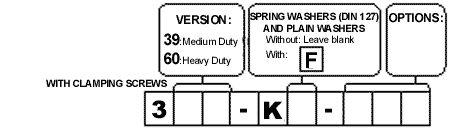

Options
| Mark in Order
Box |
Description |
| G05: |
Gold Plating (5 micro inches)
|
| G30 |
Gold Plating (30 micro inches)
|
| S30: |
Silver Plating (30 micro
inches) |
| BS: |
Brass screws |
Note: If more than one option is required,
please separate each option with a dash (-).
