| Weco Series 324-STFS and 324-STFB | |

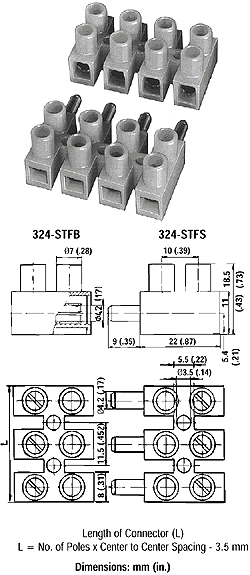

Types 324-STFS and 324-STFB11.5 mm spacing 1 to 12 poles |
|
Technical Data
Center to
Center Spacing:
11.5 mm / .452 in.
Nominal Cross Section: 6 mm2 / 9299
mils2
Wire Stripping Length: 7 mm / .28 in.
Approval Information
UL File No.
E69841
CSA File No. LR24322
| Rating | Current (A) | Voltage (V) | AWG |
|---|---|---|---|
| UL | 20 | 600 | 18-10 |
| CSA | 20/td> | 300 | 26-10 |
Breakdown Voltage: 4000 V.
Material
Molding: Polyamide, self extinguishing to UL
94, V-2, natural
Temperature Limits:
Short time: 140°C / 284°F
Continuous: 80°C / 176°F
Low limit: -40°C / -40°F
Comparative Tracking Index: CTI > 600
Oxygen Index Rating: 25%
Terminal Body: nickel or tin plated brass
Spring: stainless steel strip
Spring Sleeve: zinc plated steel
Wire protector: DS Type: tin plated copper alloy
HDS Type: stainless steel strip
Screw: M3.5), zinc plated steel, yellow chromated
Maximum Torque: : 0.8 Nm / 7.0 lb-in.
Options
Series 300 Terminal Strips can be supplied in other colors. Please consult an
e-disti representative.
Male plugs may be supplied with a protective leading pin. Please consultan
e-disti representative.
| Mark in Order Box | Description |
|---|---|
| CN: | Consecutive Numbering (hot stamped black numbers) |
| SM: | Special Marking (please provide sketch) |
| BS: | Brass Screws |
| PS: | Passivated Steel Screws |
| G05: | Gold Plating (5 micro inches) |
| G30: | Gold Plating (30 micro inches) |
| S30: | Silver Plating (30 micro inches) |
Note: If more than one option is required,
please separate each option with a dash (-).
 |

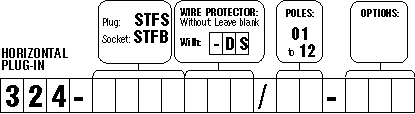

| Ordering Information |
