| Weco Series
306 |
| |

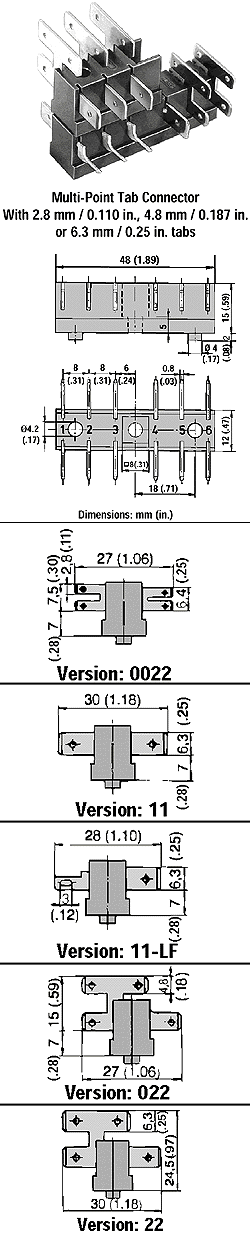

Type 306
8
mm spacing 4 and 6 poles
|
| |
|
| |
|
Description
|
|
| These connectors are flexible circuit distribution
points which are available with a variety of tabs and arrangements. Their
design and vertical tab orientation allow for high wiring density.
Types 304 and 306 can be stacked on top of
each other for even greater wiring density.
|
|
Approval
Information
UL File No.
E69841
CSA File No. LR24322
| Rating |
Current
(A) |
Voltage
(V) |
AWG |
| UL |
25 |
250 |
10
max. |
| CSA |
25 |
300 |
10
max. |
Technical
Data
Center to
Center Spacing: 8 mm / .315 in.
Nominal Cross Section:
2.8 mm tab versions: 1 mm2 / 1550 mils2
4.8 mm tab versions: 2.5 mm2 / 3874
mils2
6.3 mm tab versions: 6 mm2 / 9299 mils2
Breakdown Voltage: 4000 V.
Material
Molding: Polyamide, self extinguishing to UL
94, V-2, color grey
Temperature Limits:
Short time: 140°C / 284°F
Continuous: 80°C / 176°F
Low limit: -40°C / -40°F
Comparative Tracking Index: CTI > 600
Oxygen Index Rating: 25%
Tabs: nickel plated brass
Soldering Tongue: tin plated brass

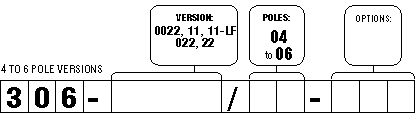

Options
| Mark in Order
Box |
Description |
| CN: |
Consecutive Numbering (hot
stamped white numbers) |
| SM: |
Special Marking (please provide
sketch) |
| G05: |
Gold Plating (5 micro inches)
|
| G30: |
Gold Plating (30 micro inches)
|
| S30: |
Silver Plating (30 micro
inches) |
| Note: If more than one option is required,
please separate each option with a dash (-).
Mixed Tab arrangements may also be ordered. Please consult an e-disti
representative.
|
