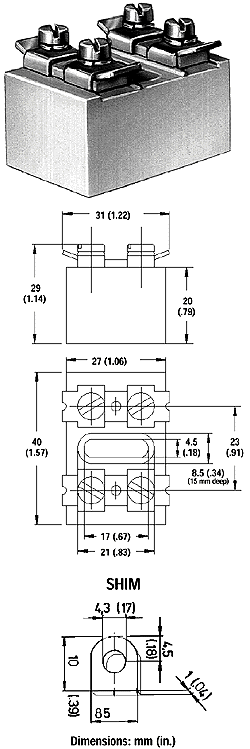

Weco Series 2-DIN-46281


Type 2-DIN-46281

2 poles

Description

To meet the pertinent DIN requirements for mounting the block, the mounting hardware should meet the following individual DIN requirements: M4 cheese head screws (DIN 84), A4 spring washers (DIN 128) and shims (DIN 46281). Shims can be ordered from WECO using the following type designation: B-DIN-46281.
Two shims are recommended per block.

Technical Data

Nominal Cross Section:
2.5 mm2 / 3874 mils2
Recommended wire size:
14 AWG
Wire Stripping Length:
8 mm / .31 in.
Recommended Operating Current and Voltage:
(maximum load at 40°C / 104°F ambient temperature)
22 A, 500V.

Material

Molding:
Glazed steatite, KER 220, DIN 40685, color white
Upper temperature limit: 240°C / 464°F
