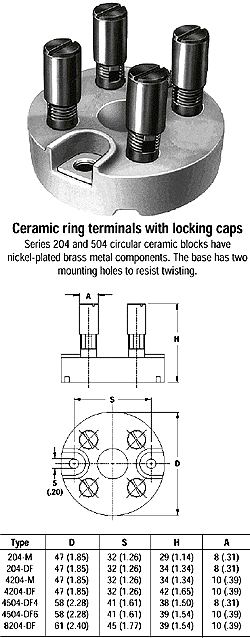

Weco Series 204 and 504


Series 204 and 504 Ring Terminals

3 and 4 poles

Technical Data

Nominal Cross Section:
Types 204-M:
3 x 2.5 mm2 / 3 x 3874 mils2
Types 204-DF, 4504-DF4,:
2 x 4 mm2 / 2 x 6199 mils2
Types 4204-M, 4204-DF, 4504-DF, 8204-DF:
2 x 6 mm2 / 2 x 9299 mils2
Wire Stripping Length: 9 mm / .35 in.Recommended operating voltage, current and
Wire range:
(maximum load at 40°C / 104°F ambient temperature)

Type Current (A) Voltage (V) AWG
380 26 - 14-6


Type 4204:

Type Current (A) Voltage (V) AWG
380 44 - 10-4


Type 8204, 4504:

Type Current (A) Voltage (V) AWG
500 44 - 10-4


Material

Molding: Glazed porcelain KER 111, DIN 40685, color white
Upper temperature limit: 240°C / 464°F
Terminal Body and Cap: nickel plated brass

Options

LOCKING CAPS

Mark in Order Box Description
I: PVC insulating caps for additional protection

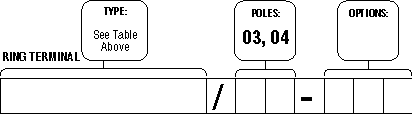

Ordering Information
